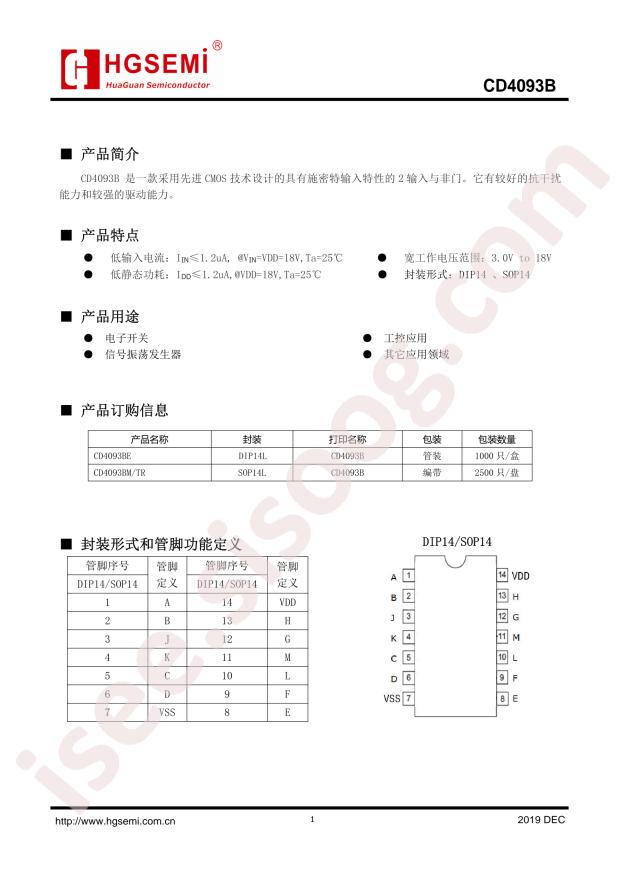

دیتاشیت CD4093BE
مشخصات دیتاشیت
| نام دیتاشیت |
CD4093B Types
|
| حجم فایل |
1359.115
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
19
|
مشخصات
-
RoHS:
true
-
Series:
4000B
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments CD4093BE
-
Sink Current:
3.4mA
-
Source Current:
3.4mA
-
Supply Voltage:
3V~18V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
4
-
Low Level Range (VIL):
0.9V~4V
-
Operating Temperature:
-55°C~+125°C
-
High Level Range (VIH):
3.6V~10.8V
-
Propagation Delay Time:
130ns@15V,50pF
-
Quiescent Current (Max):
4uA
-
Package:
DIP-14
-
Manufacturer:
Texas Instruments
-
Supplier Device Package:
14-PDIP
-
Base Part Number:
CD4093
-
Logic Type:
NAND Gate
-
Number of Circuits:
4
-
Packaging:
Tube
-
Number of Inputs:
2
-
Current - Output High, Low:
3.4mA, 3.4mA
-
Max Propagation Delay @ V, Max CL:
130ns @ 15V, 50pF
-
Features:
-
-
Logic Level - High:
3.6V ~ 10.8V
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Current - Quiescent (Max):
4µA
-
Mounting Type:
Through Hole
-
Part Status:
Active
-
Voltage - Supply:
3V ~ 18V
-
Logic Level - Low:
0.9V ~ 4V
