دیتاشیت BSS138

BSS138 Datasheet

مشخصات دیتاشیت

نام دیتاشیت BSS138 Datasheet
حجم فایل 188.057 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت BSS138 Datasheet

BSS138 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs

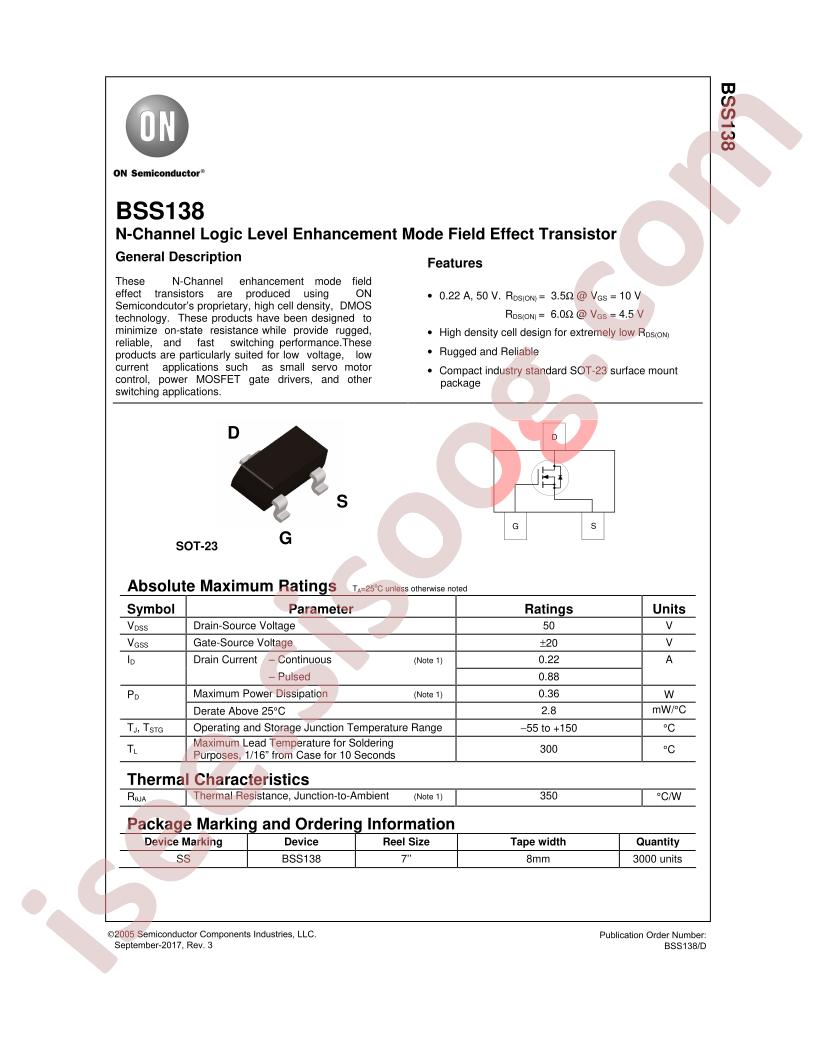

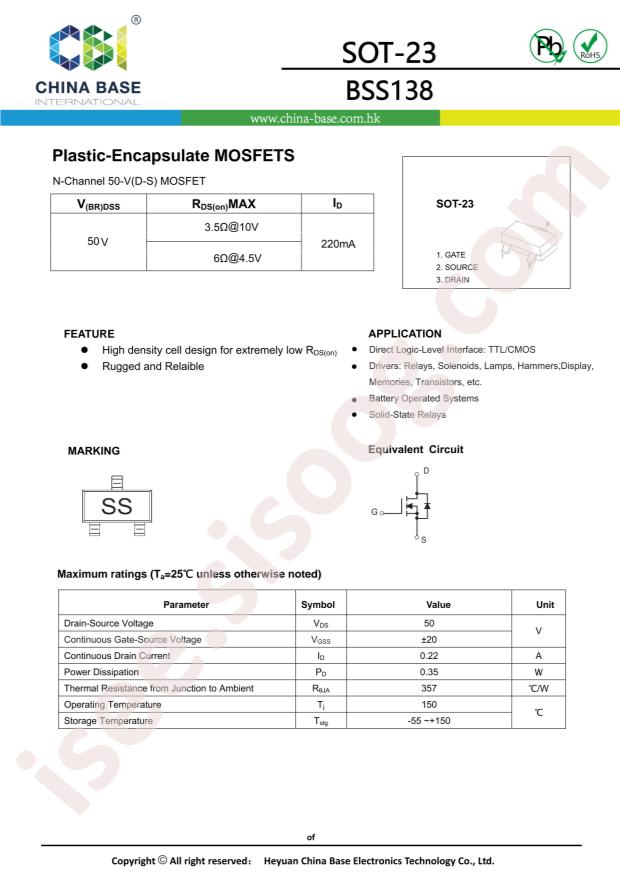

  • Datasheet: UMW(Youtai Semiconductor Co., Ltd.) BSS138
  • Power Dissipation (Pd): 300mW
  • Drain Source Voltage (Vdss): 50V
  • Continuous Drain Current (Id): 300mA
  • Gate Threshold Voltage (Vgs(th)@Id): 1.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 2.5Ω@10V,500mA
  • Package: SOT-23(TO-236)
  • Manufacturer: UMW(Youtai Semiconductor Co., Ltd.)
  • Operating Temperature: +150°C@(Tj)
  • Total Gate Charge (Qg@Vgs): -
  • Input Capacitance (Ciss@Vds): 27pF@25V
  • Reverse Transfer Capacitance (Crss@Vds): 6pF@25V
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 50V
  • Current - Continuous Drain (Id) @ 25°C: 220mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 3.5Ohm @ 220mA, 10V
  • Vgs(th) (Max) @ Id: 1.5V @ 1mA
  • Gate Charge (Qg) (Max) @ Vgs: 2.4nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 27pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 360mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-23-3
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: BSS138
  • detail: N-Channel 50V 220mA (Ta) 360mW (Ta) Surface Mount SOT-23-3
