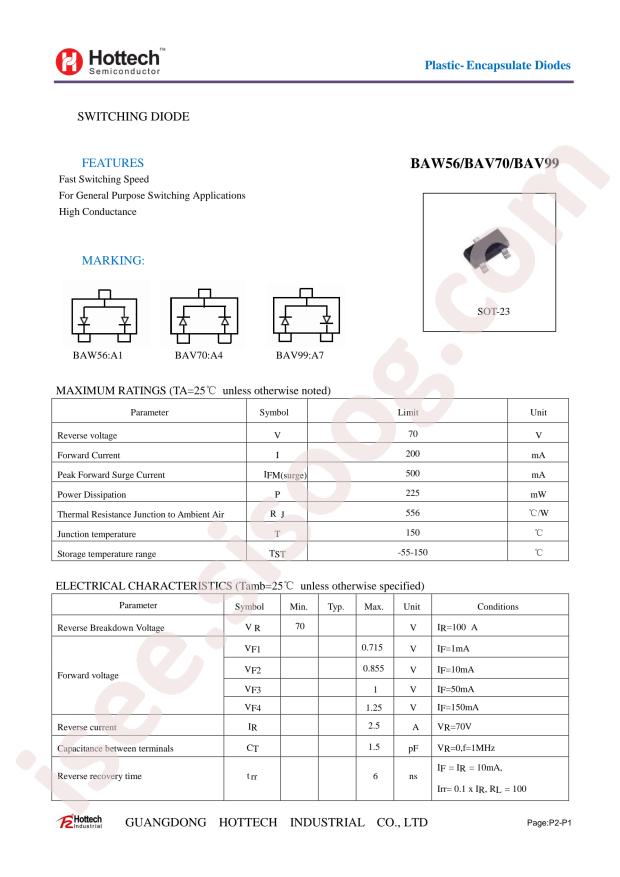

BAV70 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | BAV70 |
|---|---|
| حجم فایل | 64.543 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 2 |
دانلود دیتاشیت BAV70 |
دانلود دیتاشیت |
|---|
سایر مستندات
BAW56 4 pages
BAV70 5 pages
BAV70 2 pages
BAV70 3 pages
BAV70 2 pages
BAV70 4 pages
BAV70 2 pages
BAV70 2 pages
BAV70 4 pages
BAV70 4 pages
BAV70 3 pages
BAV70 3 pages
BAV70 3 pages
BAV70 2 pages
BAV70 3 pages
BAV70 4 pages
BAV70 4 pages
BAV70 2 pages
BAV70 2 pages
BAV70 5 pages
BAV70 2 pages
BAV70 2 pages
BAV70 4 pages
BAV70 4 pages
BAV70 4 pages
BAV70 6 pages
BAV70 4 pages
BAV70 2 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Switching Diode
- Datasheet: MDD(Microdiode Electronics) BAV70
- Power Dissipation: 225mW
- Diode Configuration: Dual Common Cathode
- Reverse Voltage (Vr): 70V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.25V@150mA
- Reverse Leakage Current: 2.5uA@70V
- Reverse Recovery Time (trr): 6ns
- Average Rectified Current (Io): 200mA
- Package: SOT-23
- Manufacturer: MDD(Microdiode Electronics)
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 70V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1.25V @ 150mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Current - Reverse Leakage @ Vr: 5µA @ 70V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
- Base Part Number: BAV70
