دیتاشیت TC7660CPA
مشخصات دیتاشیت
| نام دیتاشیت |
TC7660
|
| حجم فایل |
1207.434
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
-
-
Topology:
-
-

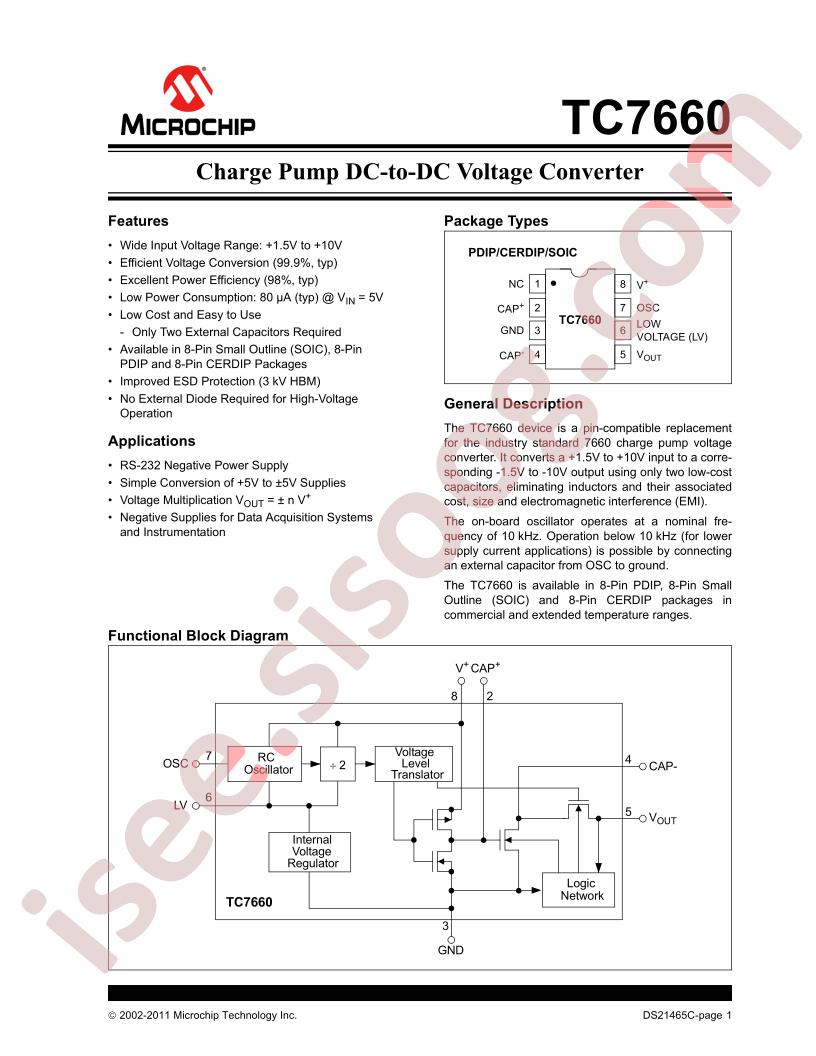

Datasheet:
Microchip Tech TC7660CPA
-
Output Type:
Fixed
-
Input Voltage:
1.5V~10V
-
Number of Outputs:
1
-
Switching Frequency:
10kHz
-
Output Current (Max):
20mA
-
Operating Temperature:
0°C~+70°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
PDIP-8
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive or Negative
-
Voltage - Input (Min):
1.5V
-
Voltage - Input (Max):
10V
-
Voltage - Output (Min/Fixed):
-Vin, 2Vin
-
Voltage - Output (Max):
-
-
Current - Output:
20mA
-
Frequency - Switching:
10kHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Through Hole
-
Package / Case:
8-DIP (0.300", 7.62mm)
-
Supplier Device Package:
8-PDIP
-
Base Part Number:
TC7660
