دیتاشیت BC547B
مشخصات دیتاشیت
| نام دیتاشیت | BC546, 547, 548 Datasheet |
|---|---|
| حجم فایل | 70.361 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت BC546, 547, 548 Datasheet |

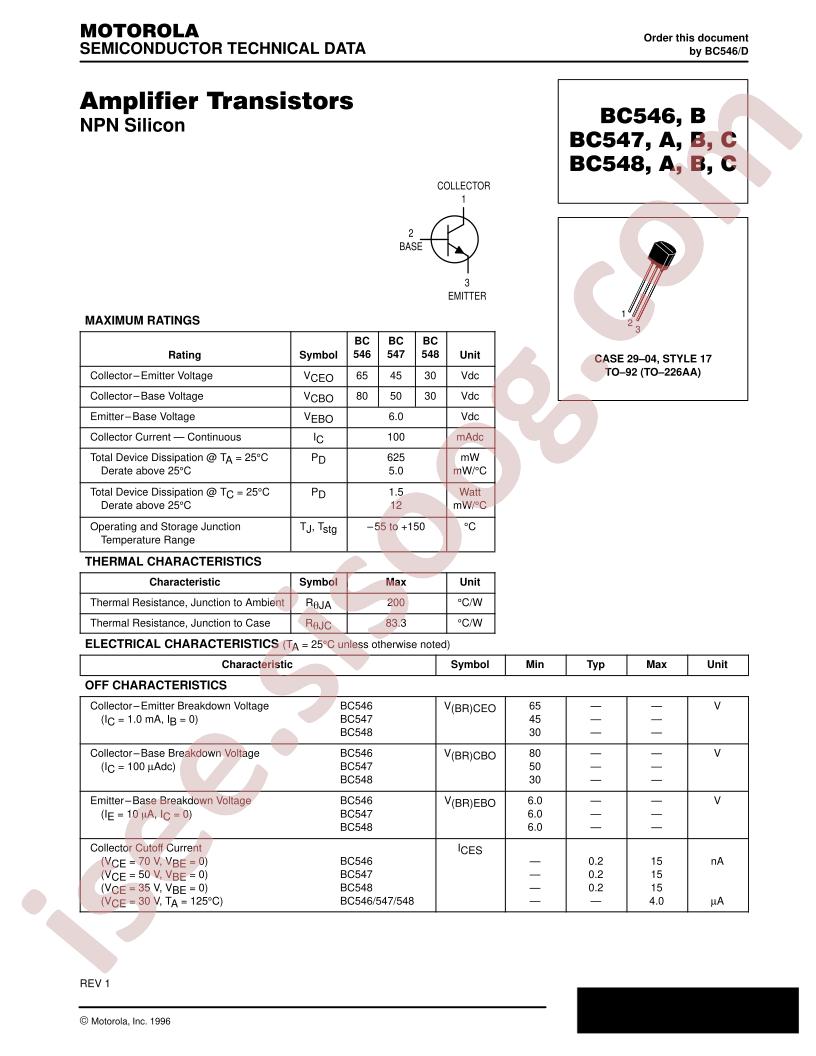

BC546, 547, 548 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: LGE BC547B
- Transistor Type: NPN
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 100mA
- Power Dissipation (Pd): 625mW
- Transition Frequency (fT): 150MHz
- DC Current Gain (hFE@Ic,Vce): 200@2mA,5V
- Collector Cut-Off Current (Icbo): 100nA
- Collector-Emitter Breakdown Voltage (Vceo): 45V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 300mV@100mA,5mA
- Package: TO-92-3
- Manufacturer: LGE
- Series: -
- Packaging: Bulk
- Part Status: Active
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 45V
- Vce Saturation (Max) @ Ib, Ic: 600mV @ 5mA, 100mA
- Current - Collector Cutoff (Max): 15nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 2mA, 5V
- Power - Max: 500mW
- Frequency - Transition: 300MHz
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package: TO-92-3
- Base Part Number: BC547
