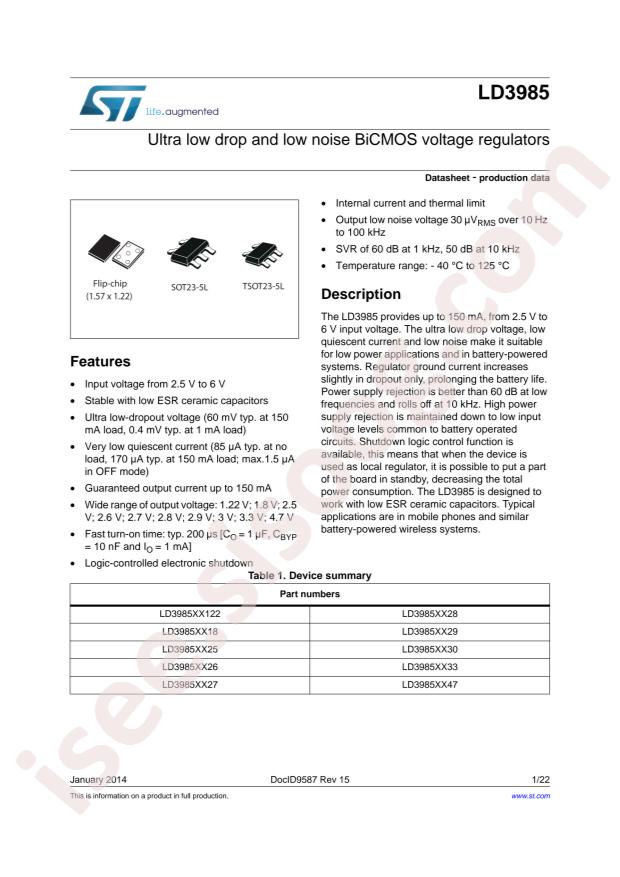

دیتاشیت LD3985M33R
مشخصات دیتاشیت
| نام دیتاشیت |
LD3985xx
|
| حجم فایل |
434.092
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
19
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics LD3985M33R
-
Output Type:
Fixed
-
Output Current:
150mA
-
Output Voltage:
3.3V
-
Dropout Voltage:
100mV@(150mA)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
6V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
150uA
-
Power Supply Rejection Ratio (PSRR):
60dB@(1kHz),50dB@(10kHz)
-
Package:
SOT-23-5
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
6V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.1V @ 150mA
-
Current - Output:
150mA
-
Current - Quiescent (Iq):
150µA
-
Current - Supply (Max):
250µA
-
PSRR:
60dB ~ 50dB (1kHz ~ 10kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-74A, SOT-753
-
Supplier Device Package:
SOT-23-5
-
Base Part Number:
LD3985
-
detail:
Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
