دیتاشیت FSFR1700XSL

FSFR-XS Series

مشخصات دیتاشیت

نام دیتاشیت FSFR-XS Series
حجم فایل 679.61 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت FSFR-XS Series

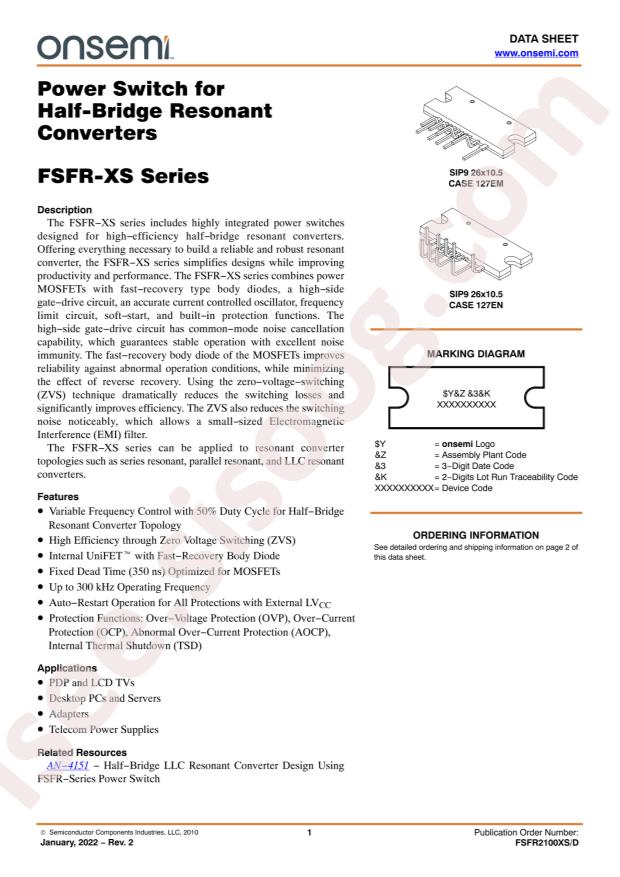

FSFR-XS Series Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: FSFR-XS
  • Packaging: Tube
  • Part Status: Active
  • Output Isolation: Isolated
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 500V
  • Topology: Half-Bridge
  • Voltage - Start Up: 12.5V
  • Voltage - Supply (Vcc/Vdd): 10V ~ 25V
  • Duty Cycle: 50%
  • Frequency - Switching: Up to 300kHz
  • Power (Watts): 200W
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage
  • Control Features: Frequency Control
  • Operating Temperature: -40°C ~ 130°C (TJ)
  • Package / Case: 10-SIP Module, 9 Leads, Formed Leads
  • Supplier Device Package: 9-SIP (L forming)
  • Mounting Type: Through Hole
  • Base Part Number: FSFR17
