دیتاشیت BAT46

BAT46

مشخصات دیتاشیت

نام دیتاشیت BAT46
حجم فایل 29.026 کیلوبایت
نوع فایل pdf
تعداد صفحات 4

دانلود دیتاشیت BAT46

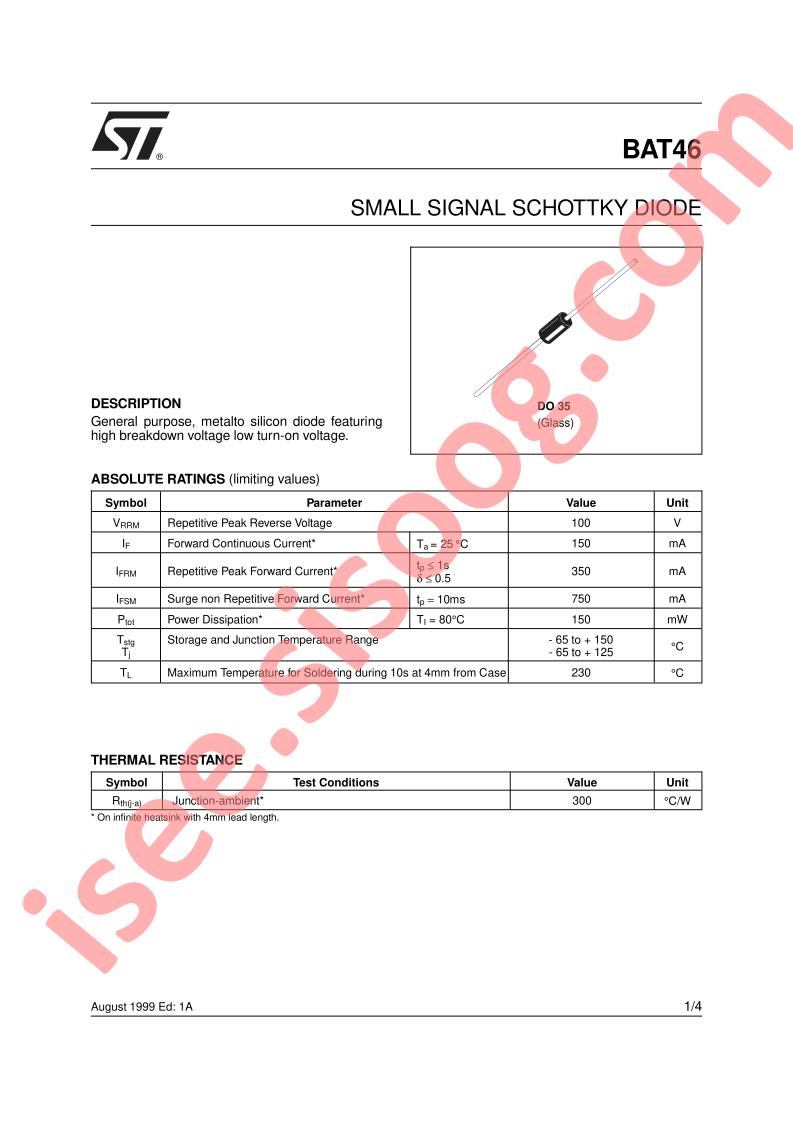

BAT46 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io): 150mA (DC)
  • Voltage - Forward (Vf) (Max) @ If: 450mV @ 10mA
  • Speed: Small Signal =< 200mA (Io), Any Speed
  • Current - Reverse Leakage @ Vr: 5µA @ 75V
  • Capacitance @ Vr, F: 10pF @ 0V, 1MHz
  • Mounting Type: Through Hole
  • Package / Case: DO-204AH, DO-35, Axial
  • Supplier Device Package: DO-35
  • Operating Temperature - Junction: -65°C ~ 125°C
  • Base Part Number: BAT46
  • detail: Diode Schottky 100V 150mA (DC) Through Hole DO-35
