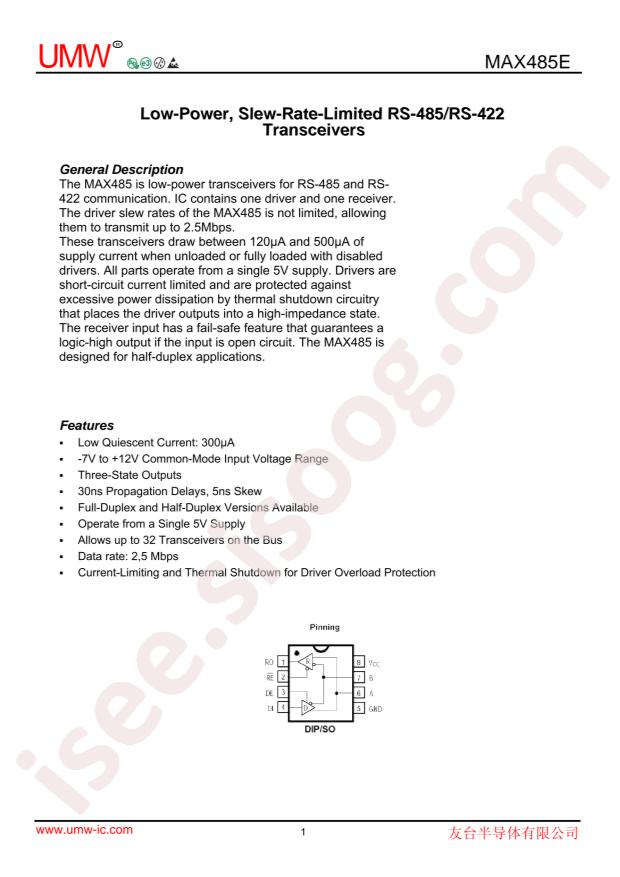

MAX485ESA Datasheet
Datasheet specifications
| Datasheet's name | MAX485ESA |
|---|---|
| File size | 64.381 KB |
| File type | |
| Number of pages | 6 |
Download Datasheet MAX485ESA |
Download Datasheet |
|---|
Other documentations
Part Numbering System 7 pages
MAX481/3/5, MAX487-91, MAX1487 17 pages
Technical specifications
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/RS-485/RS-422 ICs
- Datasheet: UMW(Youtai Semiconductor Co., Ltd.) MAX485ESA
- Package: SOP-8
- Manufacturer: UMW(Youtai Semiconductor Co., Ltd.)
- Mounting Type: Surface Mount
- Receiver Hysteresis: 70mV
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Protocol: RS422, RS485
- Part Status: Obsolete
- Duplex: Half
- Operating Temperature: -40°C ~ 85°C
- Type: Transceiver
- Series: -
- Number of Drivers/Receivers: 1/1
- Packaging: Tube
- Voltage - Supply: 4.75V ~ 5.25V
- Base Part Number: MAX485
- Data Rate: 2.5Mbps
