CD4026BE Datasheet

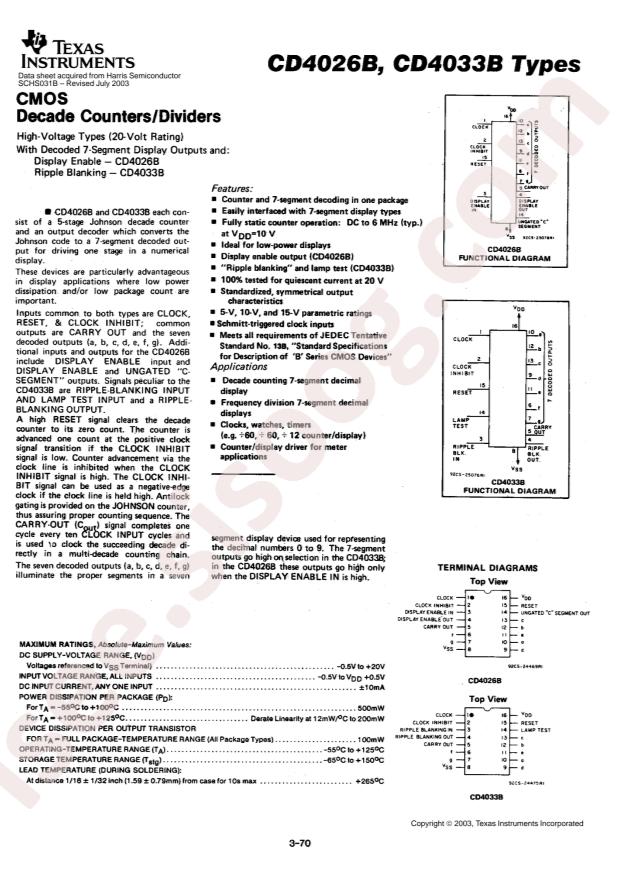

CD4026BE

Datasheet specifications

Datasheet's name CD4026BE
File size 109.809 KB
File type pdf
Number of pages 15

Download Datasheet CD4026BE

Download Datasheet

Other documentations

CD4026B,33B Types 16 pages

Technical specifications

  • RoHS: true
  • Category: Logic ICs/Counters / Dividers
  • Datasheet: Texas Instruments CD4026BE
  • Direction: 向上计数器
  • Count Rate: 16MHz
  • Logic Type: 十进制计数器
  • Reset Style: Asynchronous
  • Timing mode: Synchronous
  • Trigger Type: Positive Edge
  • Supply Voltage: 3V~18V
  • Number of Elements: 1
  • Operating Temperature: -55°C~+125°C
  • Number of Bits per Element: 5
  • Package: DIP-16
  • Manufacturer: Texas Instruments
  • Timing: Synchronous
  • Reset: Asynchronous
  • Voltage - Supply: 3V ~ 18V
  • Part Status: Active
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Series: 4000B
  • Supplier Device Package: 16-PDIP
  • Base Part Number: CD4026
  • detail: Counter IC Counter, Decade 1 Element 5 Bit Positive Edge 16-PDIP
