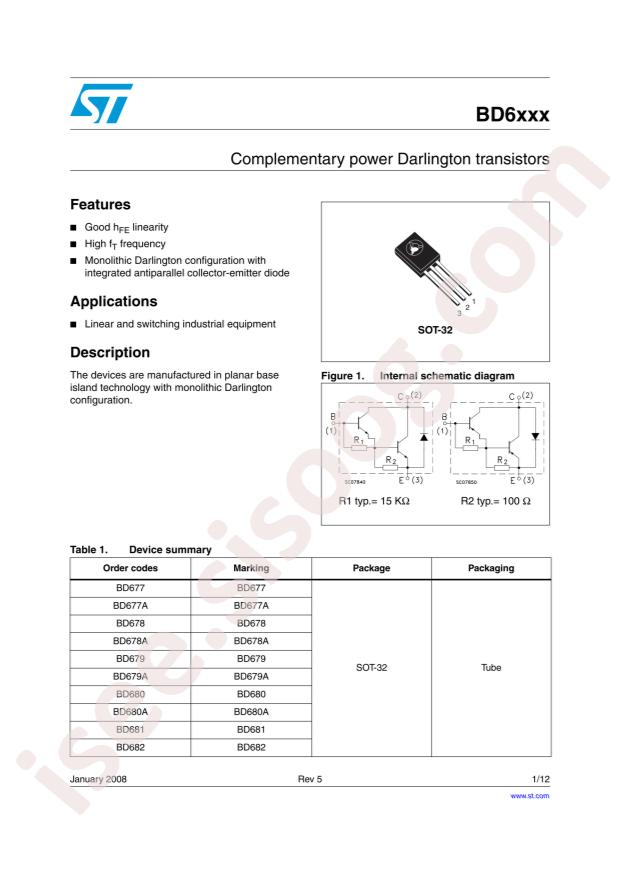

دیتاشیت BD680
مشخصات دیتاشیت
| نام دیتاشیت | BD676(A), 78(A), 80(A), 82(T) |
|---|---|
| حجم فایل | 83.599 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 4 |
دانلود دیتاشیت BD676(A), 78(A), 80(A), 82(T) |
BD676(A), 78(A), 80(A), 82(T) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Darlington Transistors
- Package: TO-263
- Manufacturer: ISC
- Datasheet: STMicroelectronics BD680
- Transistor Type: PNP
- Collector Current (Ic): 4A
- Power Dissipation (Pd): 40W
- DC current gain (hFE@Vce,Ic): 750@1.5A,3V
- Collector-emitter voltage (Vceo): 80V
- Collector cut-off current (Icbo@Vcb): 500uA
- Collector-emitter saturation voltage (VCE(sat)@Ic,Ib): 2.5V@30mA,1.5A
- Series: -
- Packaging: Bulk
- Part Status: Obsolete
- Current - Collector (Ic) (Max): 4A
- Voltage - Collector Emitter Breakdown (Max): 80V
- Vce Saturation (Max) @ Ib, Ic: 2.5V @ 30mA, 1.5A
- Current - Collector Cutoff (Max): 500µA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 750 @ 1.5A, 3V
- Power - Max: 40W
- Frequency - Transition: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-225AA, TO-126-3
- Supplier Device Package: TO-225AA
- Base Part Number: BD680
