دیتاشیت MAX232N

MAX232/I Datasheet

مشخصات دیتاشیت

نام دیتاشیت MAX232/I Datasheet
حجم فایل 1753.071 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

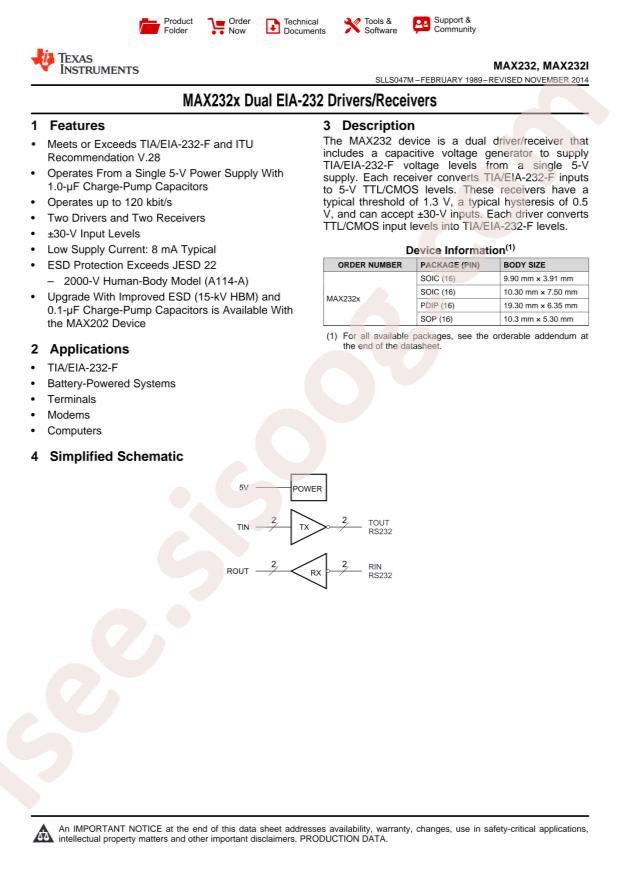

دانلود دیتاشیت MAX232/I Datasheet

MAX232/I Datasheet Datasheet

مشخصات

  • RoHS: true
  • Types: transceiver
  • Category: Communication Interface Chip/UART/485/232/RS232 ICs
  • Data Rate: 120Kbps
  • Datasheet: Texas Instruments MAX232N
  • Supply Voltage: 4.5V~5.5V
  • Driver/receiver: 2/2
  • Operating Temperature: 0°C~+70°C
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Base Part Number: MAX232
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PDIP
  • Type: Transceiver
  • Receiver Hysteresis: 500mV
  • Voltage - Supply: 4.5V ~ 5.5V
  • Packaging: Tube
  • Number of Drivers/Receivers: 2/2
  • Part Status: Active
  • Series: -
  • Mounting Type: Through Hole
  • Protocol: RS232
  • Duplex: Full
