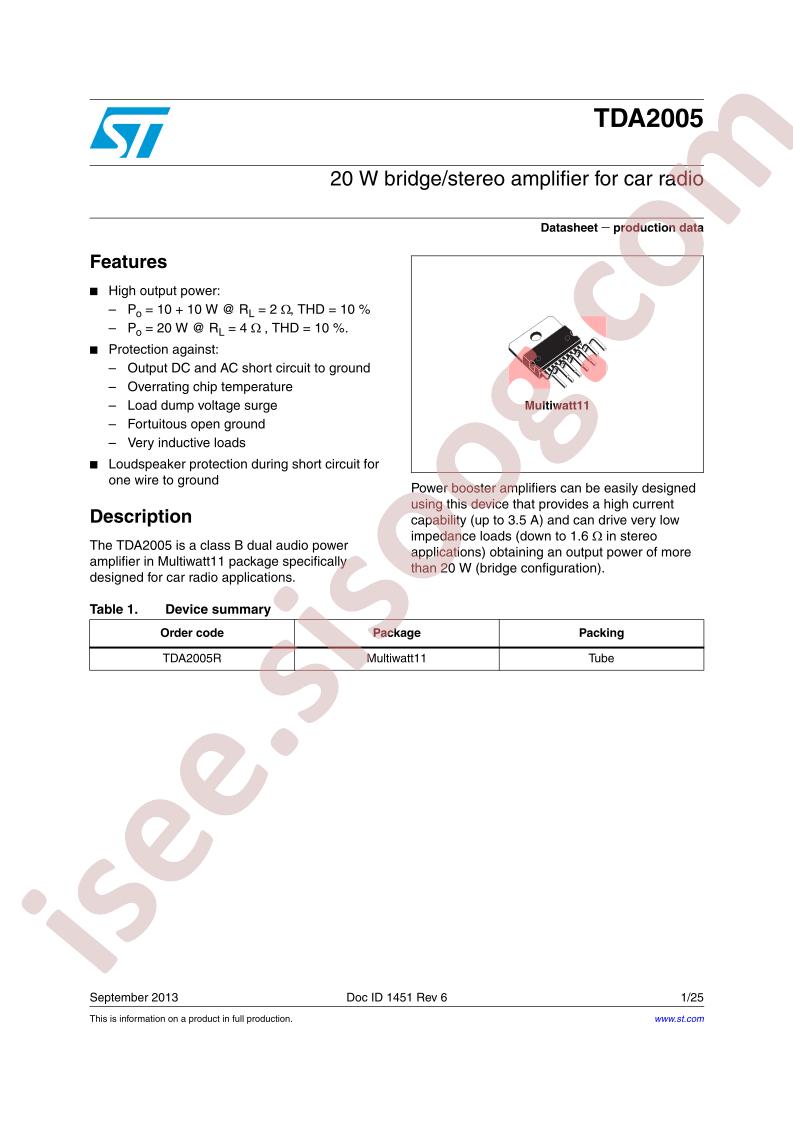

- Datasheet TDA2005R
TDA2005R Datasheet
Datasheet specifications
| Datasheet's name | TDA2005R |
|---|---|
| File size | 648.705 KB |
| File type | |
| Number of pages | 25 |
Download Datasheet TDA2005R |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Type: Class B
- Output Type: 1-Channel (Mono) or 2-Channel (Stereo)
- Max Output Power x Channels @ Load: 22W x 1 @ 3.2Ohm; 12W x 2 @ 2Ohm
- Voltage - Supply: 8V ~ 18V
- Features: Short-Circuit and Thermal Protection
- Mounting Type: Through Hole
- Operating Temperature: -40°C ~ 150°C (TJ)
- Supplier Device Package: 11-Multiwatt
- Package / Case: Multiwatt-11 (Vertical, Bent and Staggered Leads)
- Base Part Number: TDA2005
- detail: Amplifier IC 1-Channel (Mono) or 2-Channel (Stereo) Class B 11-Multiwatt
