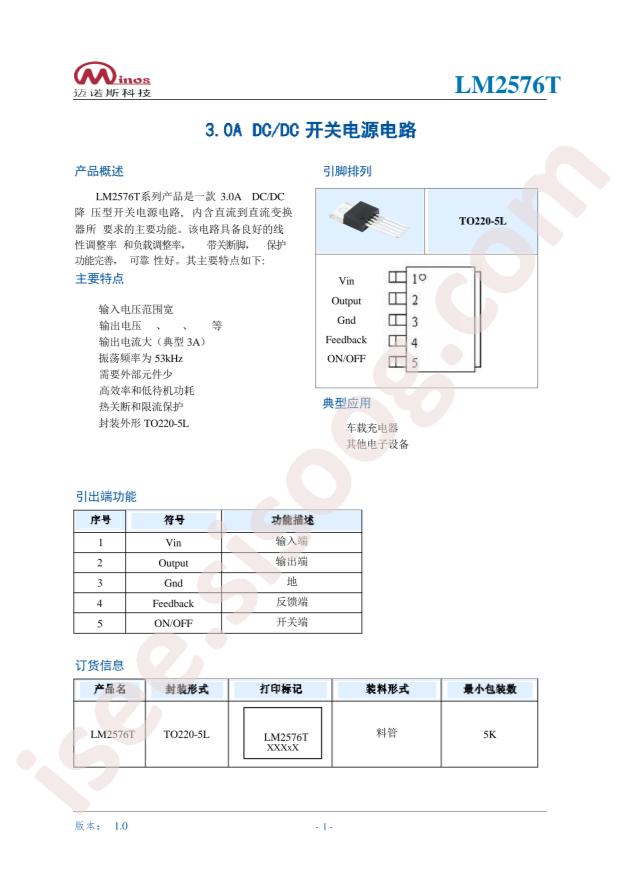

LM2576T-ADJ 数据手册
其他文档
LM2576HVT-12 12 pages
LM2576HVT-ADJ 24 pages
LM2576 28 pages
LM2576T-ADJ 26 pages
LM2576T-ADJ 10 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Datasheet: Minos LM2576T-ADJ
- Package: TO-220-5
- Manufacturer: Minos
- Function: Step-down type
- Topology: -
- Input Voltage: -
- Number of Outputs: -
- Switching Frequency: -
- Output Current (Max): -
- Synchronous Rectification: -
- Output Voltage: 1.23V~37V
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Output Configuration: Positive or Negative
- Output Type: Adjustable
- Voltage - Input (Min): 7V
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 1.23V
- Voltage - Output (Max): 37V
- Current - Output: 3A
- Frequency - Switching: 52kHz
- Synchronous Rectifier: No
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-5
- Supplier Device Package: TO-220-5
- Base Part Number: LM2576
