دیتاشیت 2N7002
مشخصات دیتاشیت
| نام دیتاشیت | 2N7000, 2N7002, NDS7002A |
|---|---|
| حجم فایل | 775.328 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت 2N7000, 2N7002, NDS7002A |
2N7000, 2N7002, NDS7002A Datasheet |
|---|
مشخصات
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs

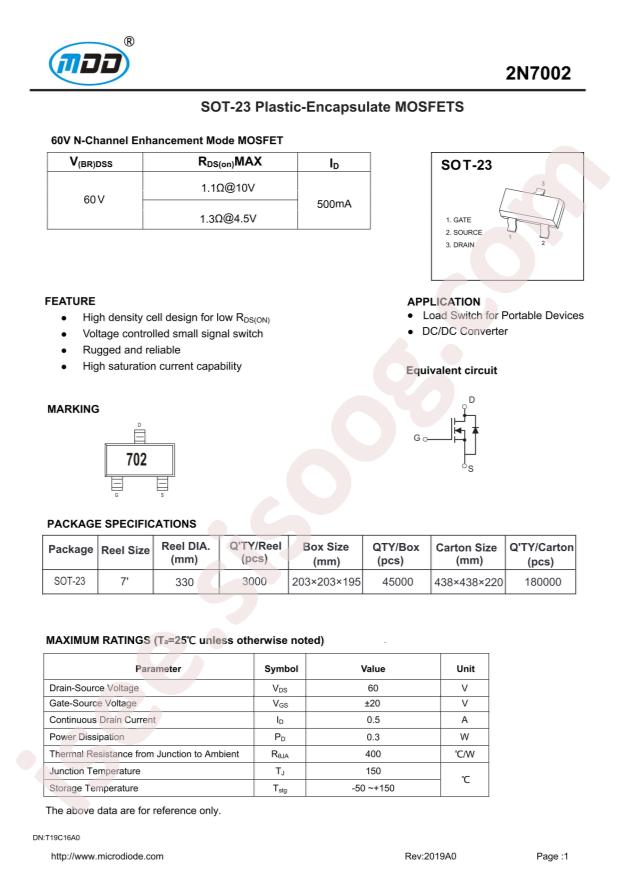

- Datasheet: KUU 2N7002
- Operating Temperature: +150°C@(Tj)
- Power Dissipation (Pd): 225mW
- Total Gate Charge (Qg@Vgs): -
- Drain Source Voltage (Vdss): 60V
- Input Capacitance (Ciss@Vds): 50pF@25V
- Continuous Drain Current (Id): 115mA
- Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
- Reverse Transfer Capacitance (Crss@Vds): 5pF@25V
- Drain Source On Resistance (RDS(on)@Vgs,Id): 2Ω@10V,100mA
- Package: SOT-23
- Manufacturer: KUU
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 115mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 7.5Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 50pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 200mW (Ta)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23 (TO-236AB)
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Base Part Number: 2N7002
