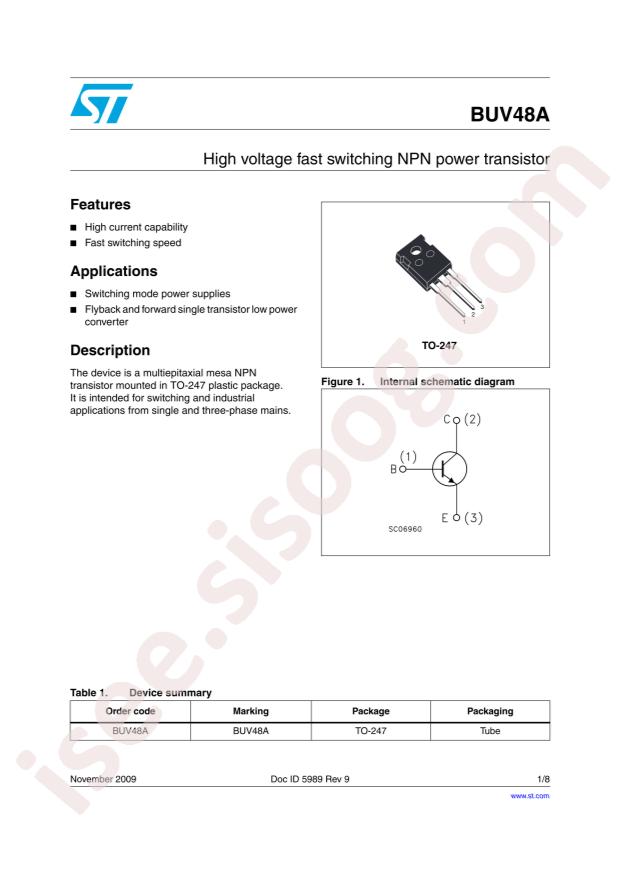

دیتاشیت BUV48A
مشخصات دیتاشیت
| نام دیتاشیت |
BUV48A
|
| حجم فایل |
112.066
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
STMicroelectronics BUV48A
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
15A
-
Power Dissipation (Pd):
125W
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
8@8A,5V
-
Collector Cut-Off Current (Icbo):
-
-
Collector-Emitter Breakdown Voltage (Vceo):
450V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
5V@12A,2.4A
-
Package:
TO-247AC-3
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Not For New Designs
-
Current - Collector (Ic) (Max):
15A
-
Voltage - Collector Emitter Breakdown (Max):
450V
-
Vce Saturation (Max) @ Ib, Ic:
5V @ 2.4A, 12A
-
Current - Collector Cutoff (Max):
200µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
8 @ 8A, 5V
-
Power - Max:
125W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
BUV48
