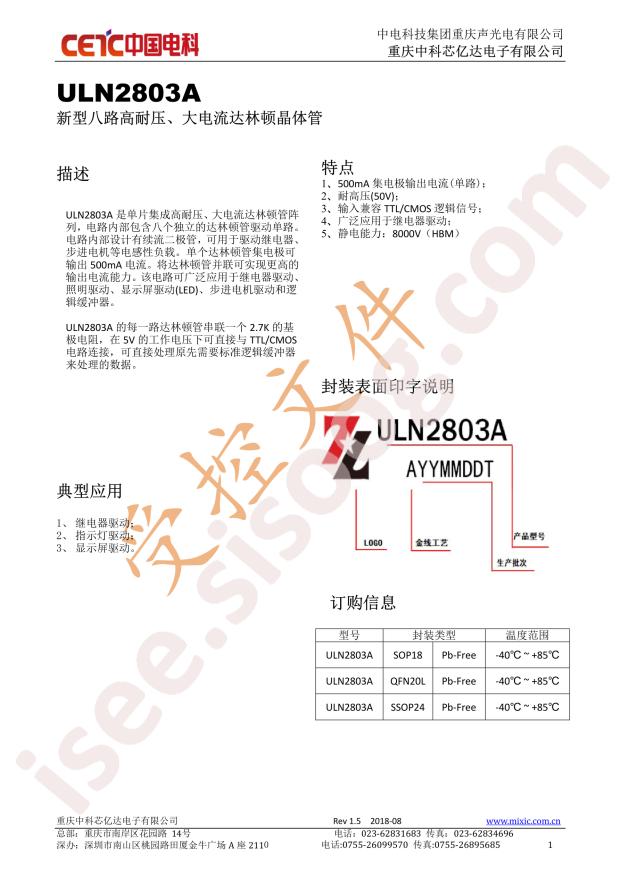

دیتاشیت ULN2803A
مشخصات دیتاشیت
| نام دیتاشیت | ULN280xA Datasheet |
|---|---|
| حجم فایل | 305.727 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 14 |
دانلود دیتاشیت ULN280xA Datasheet |
ULN280xA Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Darlington Transistor Arrays
- Datasheet: STMicroelectronics ULN2803A
- Package: DIP-18
- Manufacturer: STMicroelectronics
- Collector Current(Ic): 500mA
- Input current (Ii@Vi): 4mA@12V
- Operating Temperature: -40°C~+85°C
- Input Capacitance (Ci): 15pF
- Output leakage current (Icex@Vce): 100uA@50V
- Clamp Diode Forward Voltage (VF@IF): 1.6V@350mA
- Clamp Diode Leakage Current (IR@VR): 100uA@50V
- ON-state input voltage(VI(on)@Vce,Ic): 3V@2V,300mA
- Collector-emitter saturation voltage (VCE(sat)@Ii,Ic): 1.25V@350mA
- Series: -
- Packaging: Tube
- Part Status: Active
- Transistor Type: 8 NPN Darlington
- Current - Collector (Ic) (Max): 500mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Vce Saturation (Max) @ Ib, Ic: 1.6V @ 500µA, 350mA
- Current - Collector Cutoff (Max): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 1000 @ 350mA, 2V
- Power - Max: 2.25W
- Frequency - Transition: -
- Mounting Type: Through Hole
- Package / Case: 18-DIP (0.300", 7.62mm)
- Supplier Device Package: 18-DIP
- Base Part Number: ULN2803
