BTA40-700B Datasheet

BTA40-700B

Datasheet specifications

Datasheet's name BTA40-700B
File size 56.974 KB
File type pdf
Number of pages 12

Download Datasheet BTA40-700B

Download Datasheet

Other documentations

BT(A,B)40, BTB41 9 pages

Technical specifications

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/TRIACs
  • Datasheet: STMicroelectronics BTA40-700B
  • Package: RD91
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Bulk
  • Part Status: Active
  • Triac Type: Standard
  • Voltage - Off State: 700V
  • Current - On State (It (RMS)) (Max): 40A
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 400A, 420A
  • Current - Gate Trigger (Igt) (Max): 50mA
  • Current - Hold (Ih) (Max): 80mA
  • Configuration: Single
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Chassis Mount
  • Package / Case: RD91-3 (Insulated)
  • Supplier Device Package: RD91
  • Base Part Number: BTA40

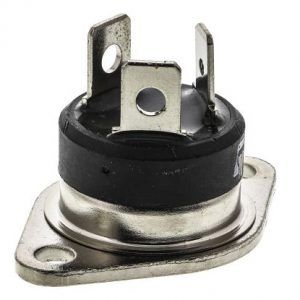

  • detail: TRIAC Standard 700V 40A Chassis Mount RD91
