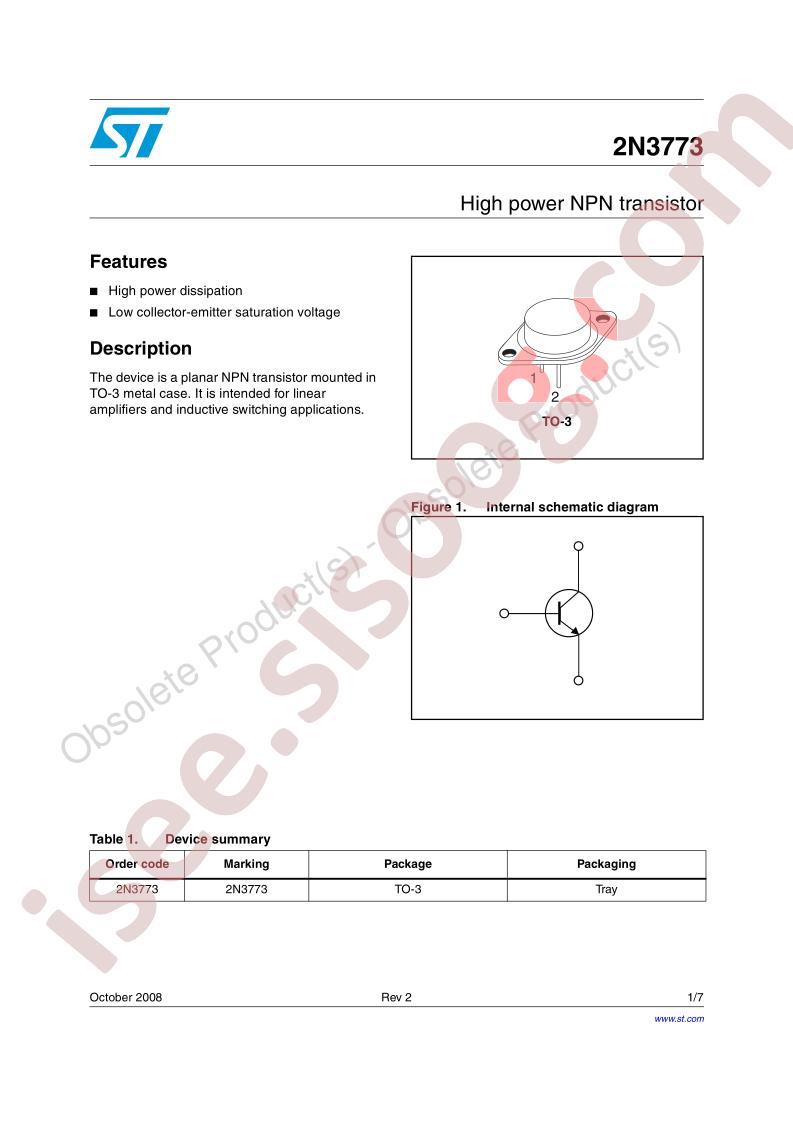

دیتاشیت 2N3773
مشخصات دیتاشیت
| نام دیتاشیت |
2N3773
|
| حجم فایل |
92.643
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
SPTECH 2N3773
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
16A
-
Power Dissipation (Pd):
150W
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
5@16A,4V
-
Collector Cut-Off Current (Icbo):
-
-
Collector-Emitter Breakdown Voltage (Vceo):
140V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
4V@16A,3.2A
-
Package:
TO-3
-
Manufacturer:
SPTECH
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
16A
-
Voltage - Collector Emitter Breakdown (Max):
140V
-
Vce Saturation (Max) @ Ib, Ic:
4V @ 3.2A, 16A
-
Current - Collector Cutoff (Max):
10mA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
15 @ 8A, 4V
-
Power - Max:
150W
-
Frequency - Transition:
-
-
Mounting Type:
Chassis Mount
-
Package / Case:
TO-204AA, TO-3
-
Supplier Device Package:
TO-3
-
Base Part Number:
2N37
-
detail:
Bipolar (BJT) Transistor NPN 140V 16A 150W Chassis Mount TO-3
