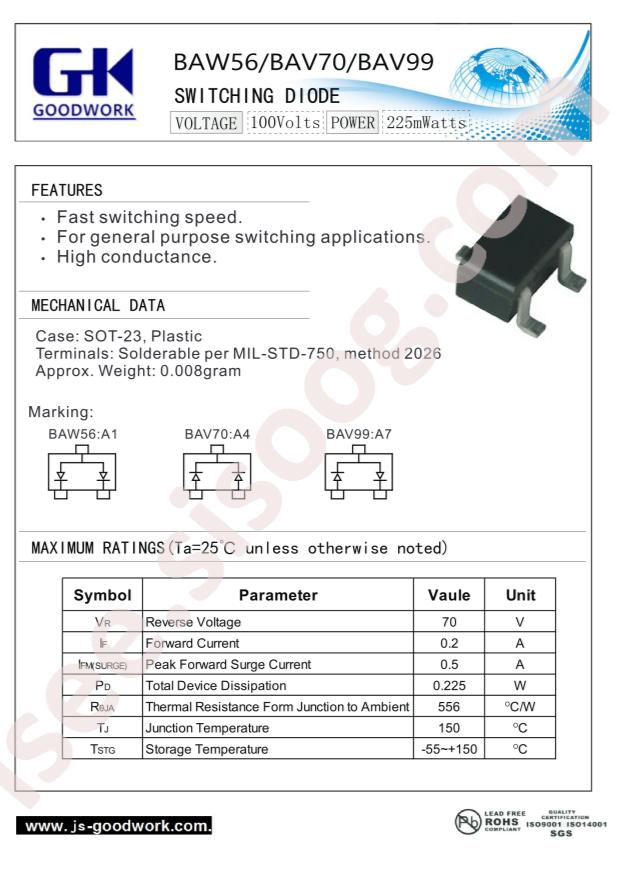

BAV99 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | BAV99 |
|---|---|
| حجم فایل | 83.413 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت BAV99 |
دانلود دیتاشیت |
|---|
سایر مستندات
BAW56 4 pages
BAW56 5 pages
BAV70 2 pages
BAV70 4 pages
BAV70 4 pages
BAV70 2 pages
BAV99 3 pages
BAV99 4 pages
BAV99 3 pages
BAV99 4 pages
BAV99 3 pages
BAV99 2 pages
BAV99 4 pages
BAV99 3 pages
BAV99 2 pages
BAV99 3 pages
BAV99 7 pages
BAV99 2 pages
BAV99 3 pages
BAV99 4 pages
BAV99 3 pages
BAV99 4 pages
BAV99 3 pages
BAV99 8 pages
BAV99 3 pages
BAV99 3 pages
BAV99 2 pages
BAV99 2 pages
BAV99 3 pages
BAV99 2 pages
BAV99 4 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Switching Diode
- Datasheet: PANJIT International BAV99
- Power Dissipation: 250mW
- Diode Configuration: Single
- Reverse Voltage (Vr): 75V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.25V@150mA
- Reverse Leakage Current: 2.5uA@75V
- Reverse Recovery Time (trr): 4ns
- Average Rectified Current (Io): 150mA
- Package: SOT-23
- Manufacturer: PANJIT International
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 70V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1.25V @ 150mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Current - Reverse Leakage @ Vr: 2.5µA @ 70V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
- Base Part Number: BAV99
