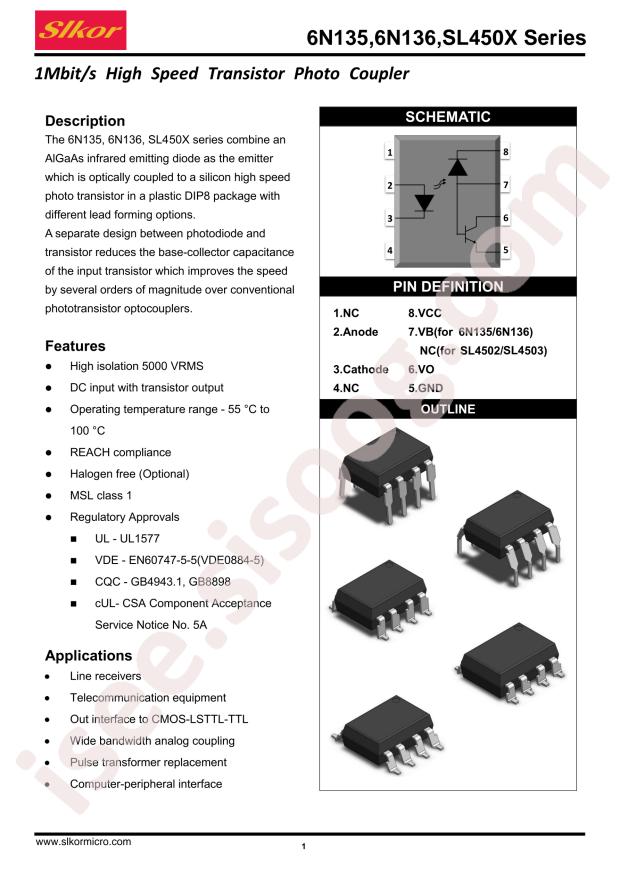

6N136 Datasheet
Datasheet specifications
|
Datasheet's name
|
6N136
|
|
File size
|
80.354
KB
|
|
File type
|
pdf
|
|
Number of pages
|
15
|
Technical specifications
-
RoHS:
true
-
Category:
Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
-
Data Rate:
1Mbit/s
-
Datasheet:
Everlight Elec 6N136
-
Input Type:
DC
-
Supply Voltage:
-
-
Number of Channels:
1
-
Operating Temperature:
-40°C~+85°C
-
Isolation Voltage(rms):
5000V
-
Propagation Delay tpLH/tpHL:
0.8us
-
Common Mode Transient Immunity (CMTI):
1kV/us
-
Package:
DIP-8
-
Manufacturer:
Everlight Elec
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Voltage - Isolation:
3750Vrms
-
Current Transfer Ratio (Min):
19% @ 16mA
-
Current Transfer Ratio (Max):
50% @ 16mA
-
Turn On / Turn Off Time (Typ):
200ns, 600ns
-
Rise / Fall Time (Typ):
-
-
Output Type:
Transistor with Base
-
Voltage - Output (Max):
20V
-
Current - Output / Channel:
8mA
-
Voltage - Forward (Vf) (Typ):
1.5V
-
Current - DC Forward (If) (Max):
25mA
-
Vce Saturation (Max):
-
-
Mounting Type:
Through Hole
-
Package / Case:
8-DIP (0.300", 7.62mm)
-
Supplier Device Package:
8-DIP
-
Base Part Number:
6N136
