دیتاشیت 2SD1047

2SD1047

مشخصات دیتاشیت

نام دیتاشیت 2SD1047
حجم فایل 189.682 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت 2SD1047

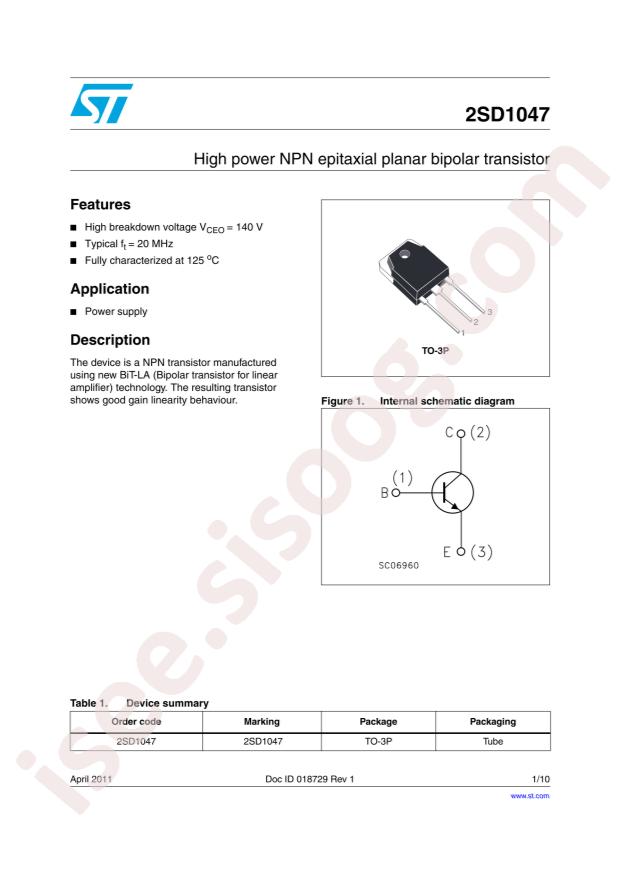

2SD1047 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: STMicroelectronics 2SD1047
  • Transistor Type: NPN
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 12A
  • Power Dissipation (Pd): 100W
  • Transition Frequency (fT): 20MHz
  • DC Current Gain (hFE@Ic,Vce): 60@1A,5V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 140V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 700mV@7A,700mA
  • Package: TO-3P
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Current - Collector (Ic) (Max): 12A
  • Voltage - Collector Emitter Breakdown (Max): 140V
  • Vce Saturation (Max) @ Ib, Ic: 700mV @ 700mA, 7A
  • Current - Collector Cutoff (Max): 100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 60 @ 1A, 5V
  • Power - Max: 100W
  • Frequency - Transition: 20MHz
  • Mounting Type: Through Hole
  • Package / Case: TO-3P-3, SC-65-3
  • Supplier Device Package: TO-3P
  • Base Part Number: 2SD1
