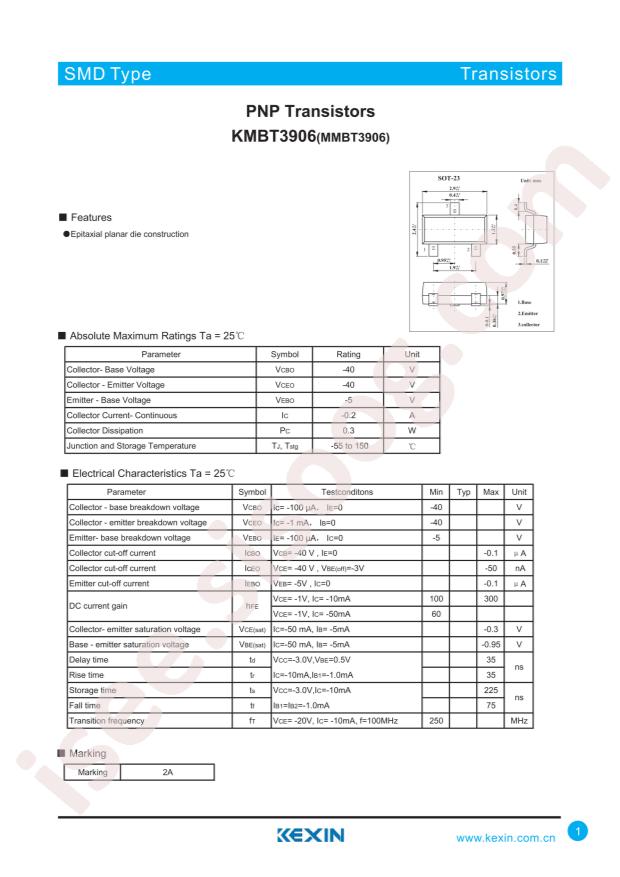

دیتاشیت MMBT3906

2N3906, MMBT3906, PZT3906

مشخصات دیتاشیت

نام دیتاشیت 2N3906, MMBT3906, PZT3906
حجم فایل 515.535 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

دانلود دیتاشیت 2N3906, MMBT3906, PZT3906

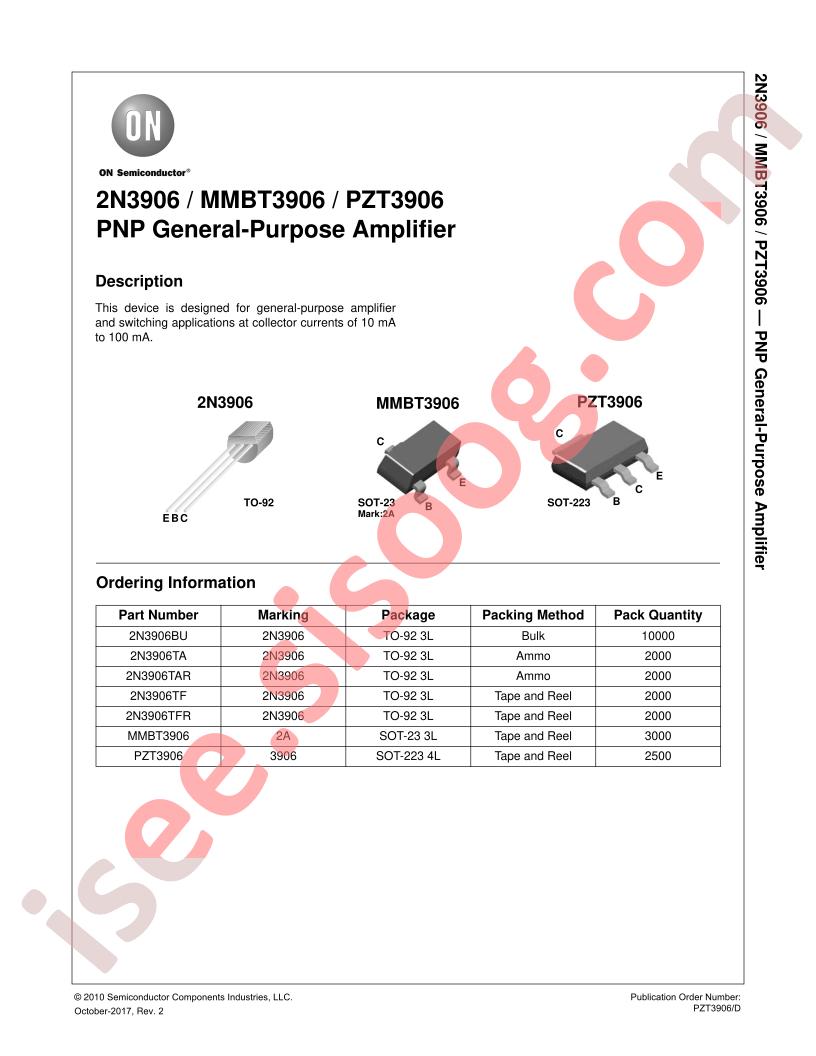

2N3906, MMBT3906, PZT3906 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: BORN MMBT3906
  • Transistor Type: PNP
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 200mA
  • Power Dissipation (Pd): 200mW
  • Transition Frequency (fT): 300MHz
  • DC Current Gain (hFE@Ic,Vce): 100@10mA,1V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 40V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 400mV@50mA,5mA

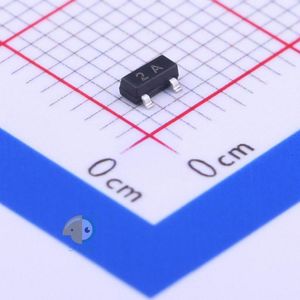

  • Package: SOT-23
  • Manufacturer: BORN
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Current - Collector (Ic) (Max): 200mA
  • Voltage - Collector Emitter Breakdown (Max): 40V
  • Vce Saturation (Max) @ Ib, Ic: 400mV @ 5mA, 50mA
  • Current - Collector Cutoff (Max): -
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 1V
  • Power - Max: 350mW
  • Frequency - Transition: 250MHz
  • Mounting Type: Surface Mount
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23-3
  • Base Part Number: MMBT3906
