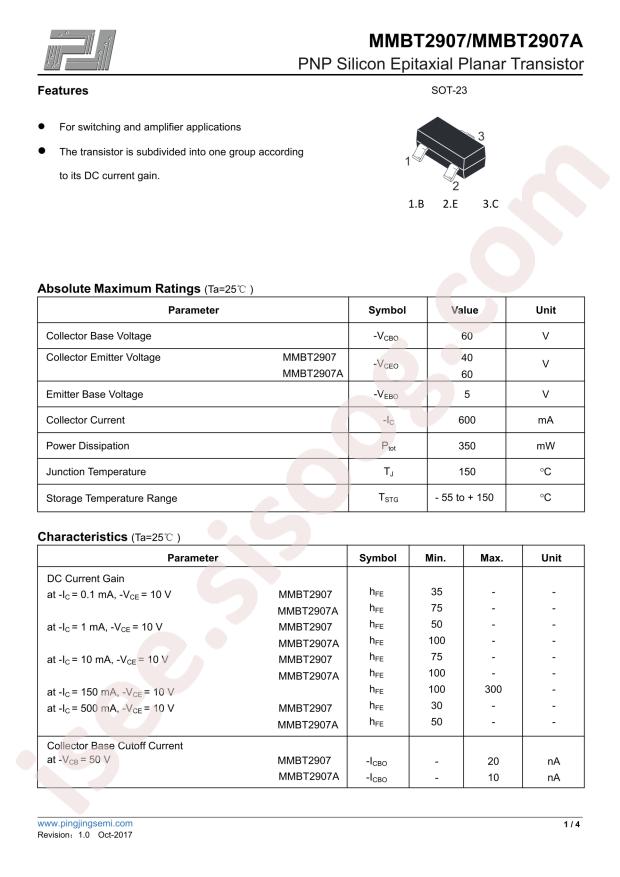

- دیتاشیت MMBT2907A
MMBT2907A دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MMBT2907A |
|---|---|
| حجم فایل | 70.317 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 4 |
دانلود دیتاشیت MMBT2907A |
دانلود دیتاشیت |
|---|
سایر مستندات

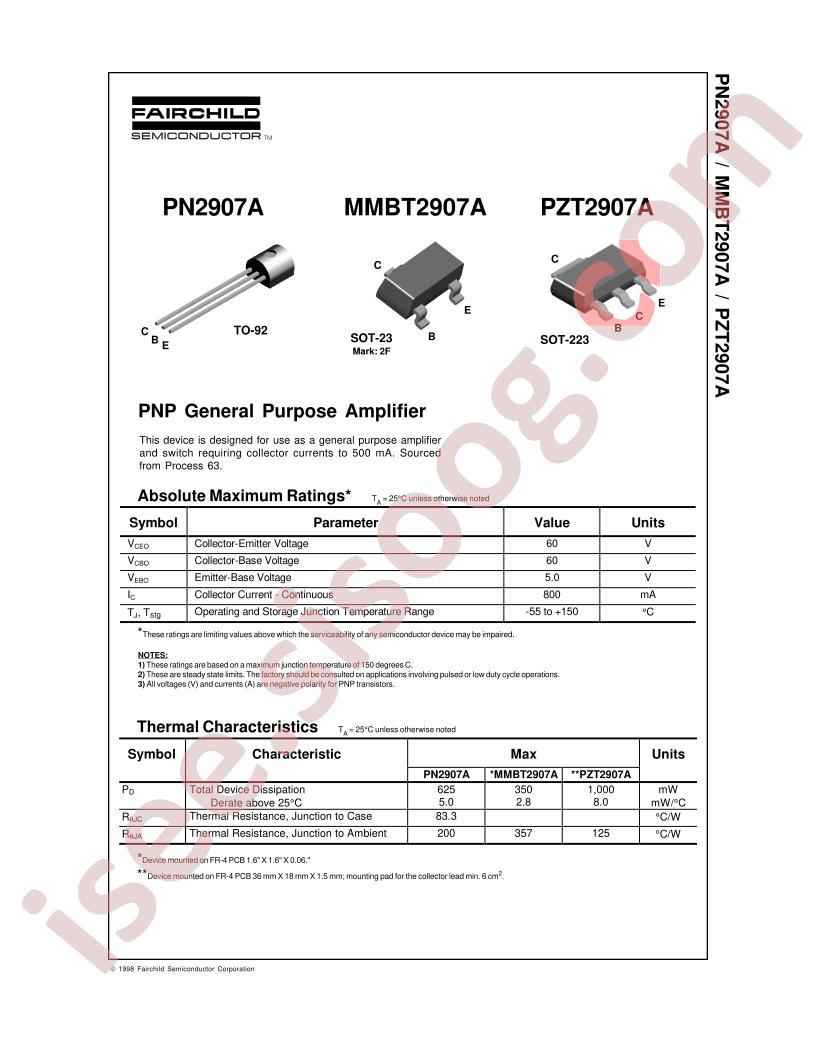

PN2907, MMBT2907,PZT2907A 17 pages
MMBT2907A 4 pages
MMBT2907A 4 pages
MMBT2907A 4 pages
MMBT2907A 4 pages
MMBT2907A 3 pages
MMBT2907A 6 pages
MMBT2907A 4 pages
MMBT2907A 6 pages
MMBT2907A 4 pages
MMBT2907A 4 pages
MMBT2907A 4 pages
MMBT2907A 2 pages
MMBT2907A 2 pages
MMBT2907A 4 pages
MMBT2907A 3 pages
MMBT2907A 5 pages
MMBT2907A 3 pages
MMBT2907A 5 pages
MMBT2907A 4 pages
MMBT2907A 4 pages
MMBT2907A 7 pages
MMBT2907A 3 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: Foshan Blue Rocket Elec MMBT2907A
- Transistor Type: PNP
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 600mA
- Power Dissipation (Pd): 350mW
- Transition Frequency (fT): 200MHz
- DC Current Gain (hFE@Ic,Vce): 100@150mA,10V
- Collector Cut-Off Current (Icbo): 10nA
- Collector-Emitter Breakdown Voltage (Vceo): 60V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 1.6V@500mA,50mA
- Package: SOT-23(TO-236)
- Manufacturer: Foshan Blue Rocket Elec
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Current - Collector (Ic) (Max): 800mA
- Voltage - Collector Emitter Breakdown (Max): 40V
- Vce Saturation (Max) @ Ib, Ic: 1.6V @ 50mA, 500mA
- Current - Collector Cutoff (Max): 20nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 150mA, 10V
- Power - Max: 350mW
- Frequency - Transition: -
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
- Base Part Number: MMBT2907
- detail: Bipolar (BJT) Transistor PNP 40V 800mA 350mW Surface Mount SOT-23-3
