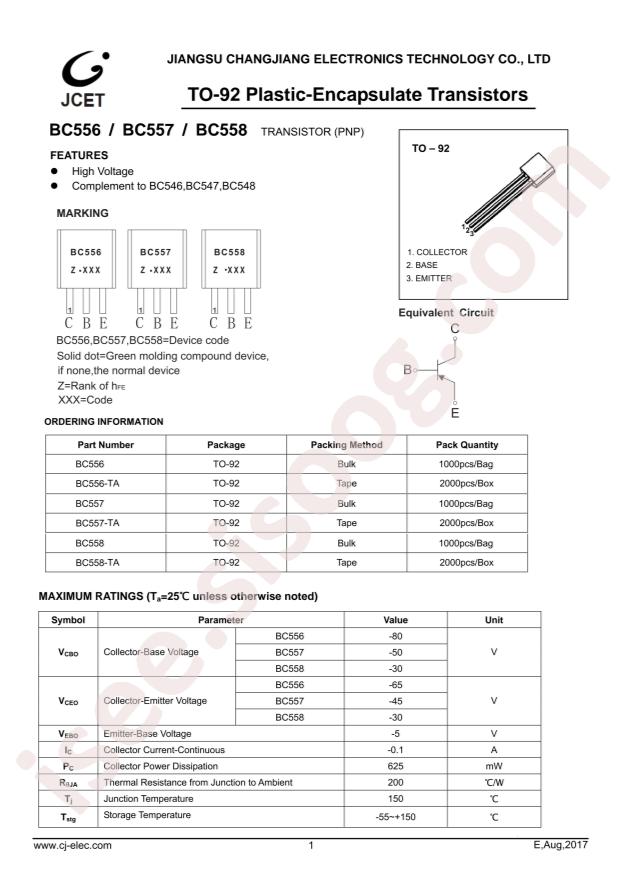

دیتاشیت BC557
مشخصات دیتاشیت
| نام دیتاشیت |
BC556-60
|
| حجم فایل |
357.799
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Jiangsu Changjing Electronics Technology Co., Ltd. BC557
-
Transistor Type:
PNP
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
100mA
-
Power Dissipation (Pd):
625mW
-
Transition Frequency (fT):
150MHz
-
DC Current Gain (hFE@Ic,Vce):
420@2mA,5V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
45V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
650mV@100mA,5mA
-
Package:
TO-92
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
100mA
-
Voltage - Collector Emitter Breakdown (Max):
45V
-
Vce Saturation (Max) @ Ib, Ic:
650mV @ 5mA, 100mA
-
Current - Collector Cutoff (Max):
15nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
110 @ 2mA, 5V
-
Power - Max:
500mW
-
Frequency - Transition:
150MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-226-3, TO-92-3 (TO-226AA)
-
Supplier Device Package:
TO-92-3
-
Base Part Number:
BC557
