- TIP142

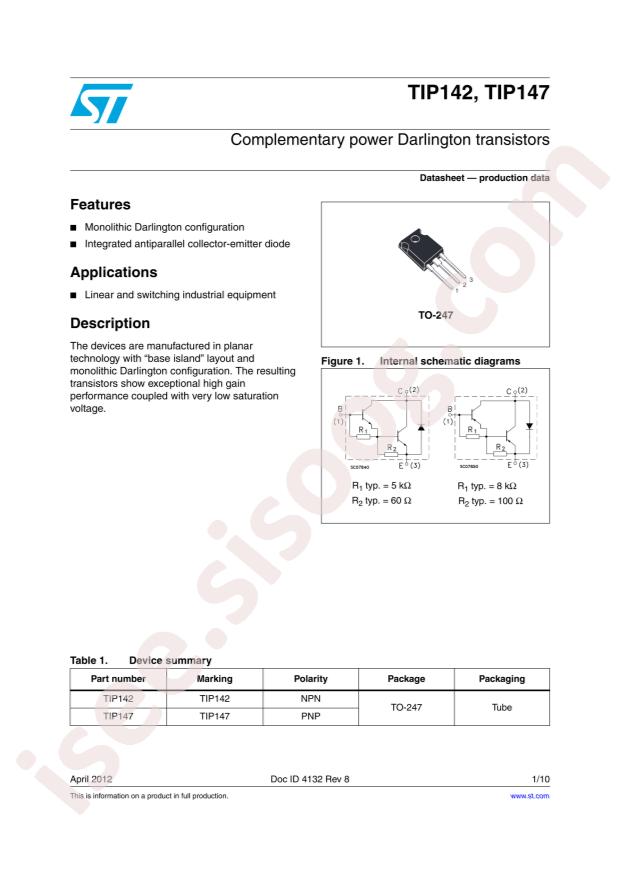

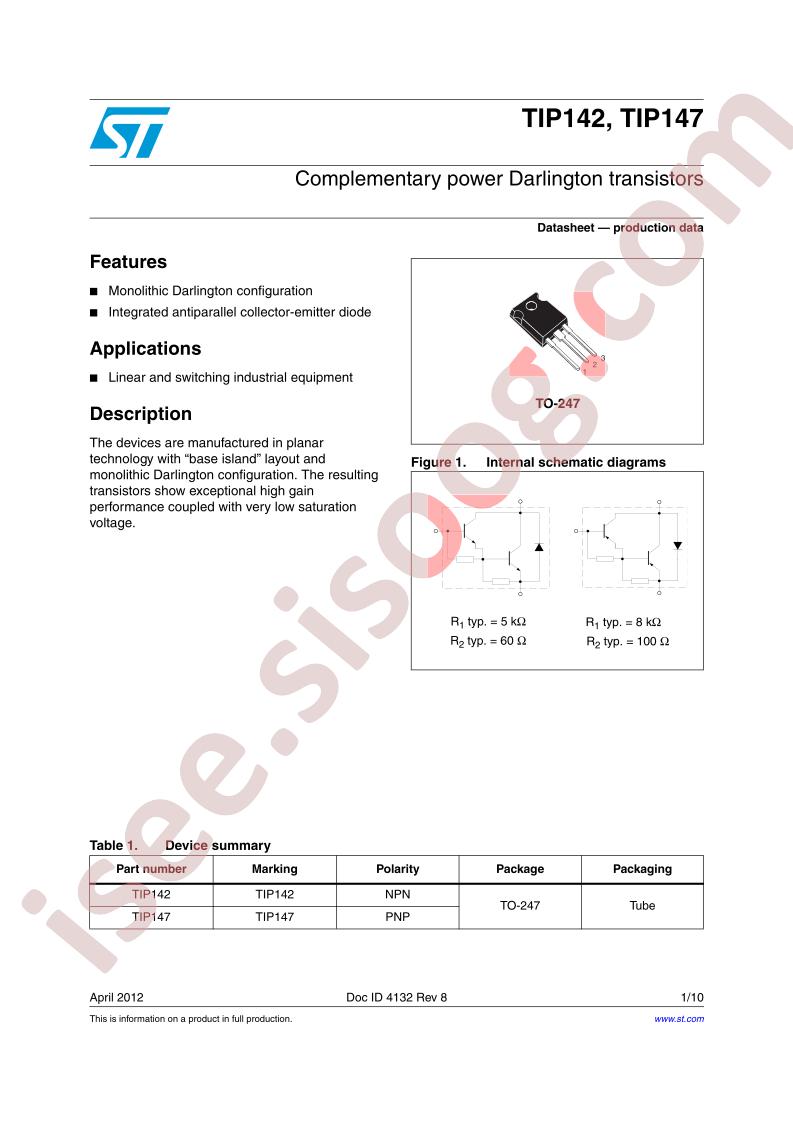

TIP142 Datasheet
Datasheet specifications
| Datasheet's name | TIP142 |
|---|---|
| File size | 49.464 KB |
| File type | |
| Number of pages | 10 |
Download Datasheet TIP142 |
Download Datasheet |
|---|
Other documentations
TIP140-142, TIP145-147 4 pages
TIP142, TIP147 10 pages
Technical specifications
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Darlington Transistors
- Datasheet: STMicroelectronics TIP142
- Transistor Type: NPN
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 10A
- Power Dissipation (Pd): 125W
- Transition frequency (fT): -
- DC current gain (hFE@Vce,Ic): 1000@4V,5A
- Collector-emitter voltage (Vceo): 100V
- Collector cut-off current (Icbo@Vcb): 2mA
- Collector-emitter saturation voltage (VCE(sat)@Ic,Ib): 3V@10A,40mA
- Package: TO-247AC-3
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Current - Collector (Ic) (Max): 10A
- Voltage - Collector Emitter Breakdown (Max): 100V
- Vce Saturation (Max) @ Ib, Ic: 3V @ 40mA, 10A
- Current - Collector Cutoff (Max): 2mA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 1000 @ 5A, 4V
- Power - Max: 125W
- Frequency - Transition: -
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247
- Base Part Number: TIP142
