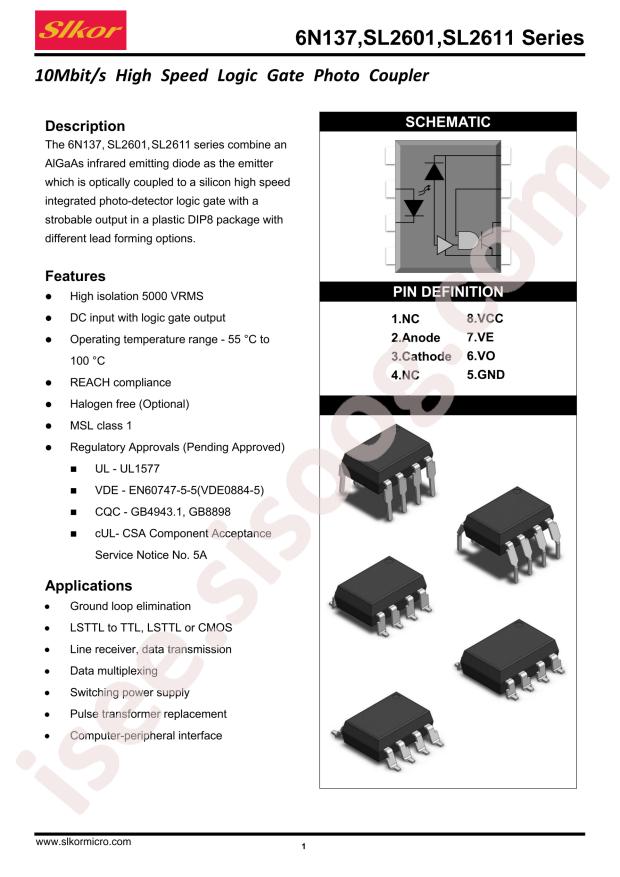

6N137 Datasheet
Datasheet specifications
| Datasheet's name | 6N137 |
|---|---|
| File size | 75.426 KB |
| File type | |
| Number of pages | 19 |
Download Datasheet 6N137 |
Download Datasheet |
|---|
Other documentations
Technical specifications
- RoHS: true
- Category: Optocoupler/LED/Digital Tube/Photoelectric Device/Optocouplers - Logic Output
- Data Rate: 10Mbit/s
- Datasheet: CT Micro International 6N137
- Input Type: DC
- Supply Voltage: 5.5V
- Number of Channels: 1
- Operating Temperature: -40°C~+85°C
- Propagation Delay tpLH/tpHL: 39ns;34ns
- Common Mode Transient Immunity (CMTI): 10kV/us
- Package: DIP-8
- Manufacturer: CT Micro International
- Isolation Voltage(rms): 5000V
- Series: -
- Packaging: Tube
- Part Status: Obsolete
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 10kV/µs (Typ)
- Output Type: Open Collector
- Current - Output / Channel: 50mA
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 50ns, 12ns
- Voltage - Forward (Vf) (Typ): 1.4V
- Current - DC Forward (If) (Max): 50mA
- Voltage - Supply: 4.5V ~ 5.5V
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
- Base Part Number: 6N137
