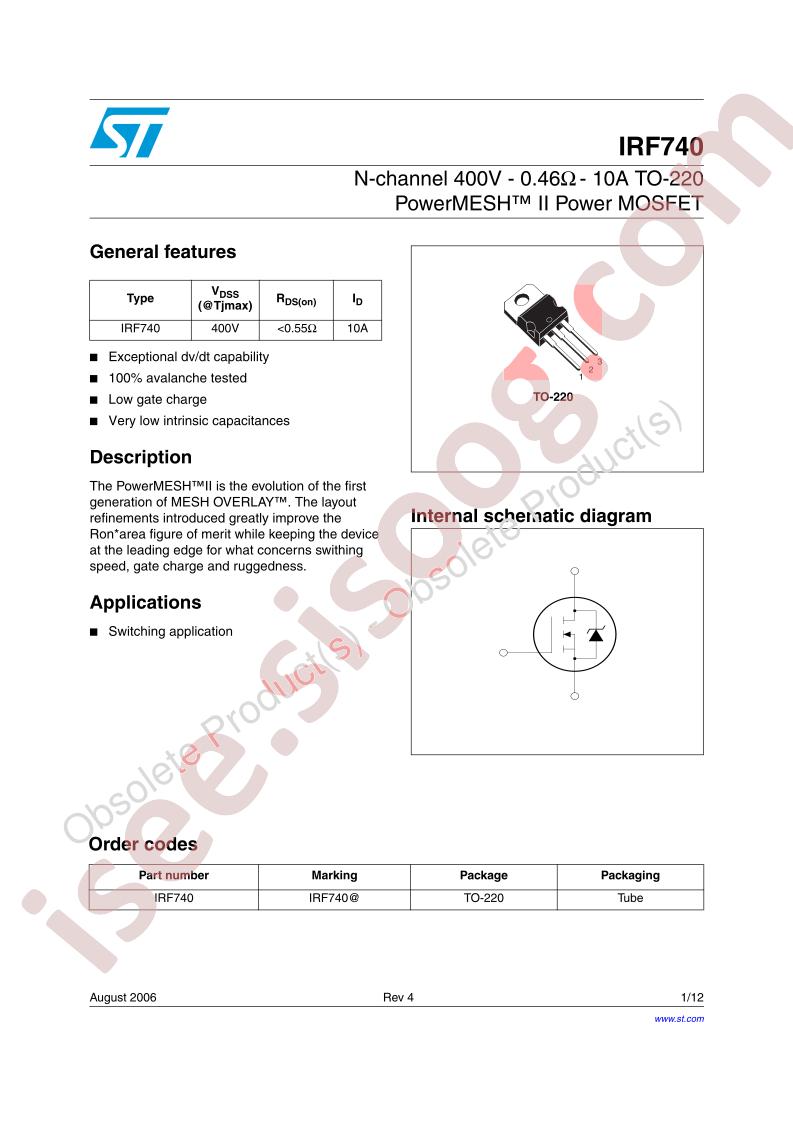

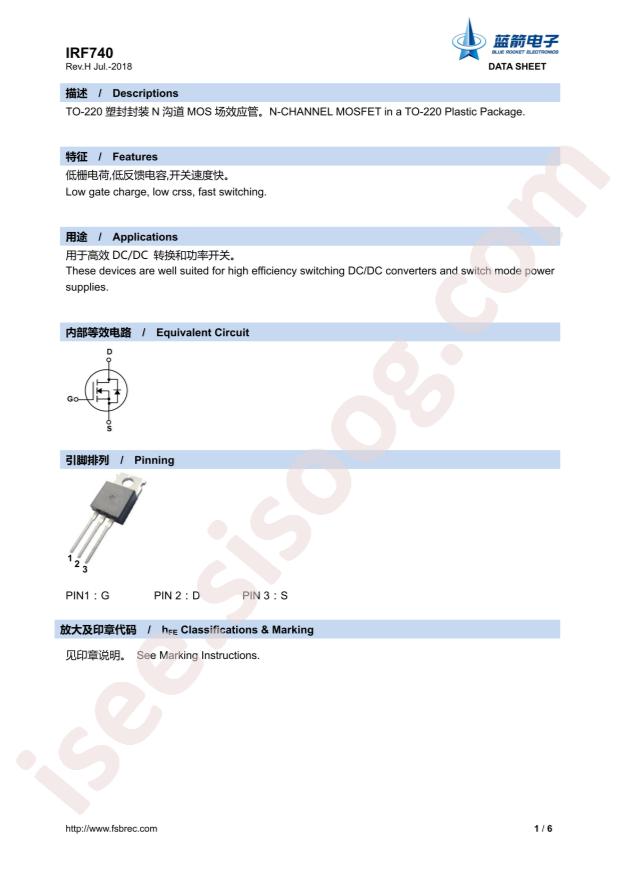

دیتاشیت IRF740
مشخصات دیتاشیت
| نام دیتاشیت |
IRF740
|
| حجم فایل |
282.102
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Minos IRF740
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
100W
-
Drain Source Voltage (Vdss):
400V
-
Continuous Drain Current (Id):
10A
-
Package:
TO-220
-
Manufacturer:
Minos
-
Series:
PowerMESH™ II
-
Packaging:
Tube
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
400V
-
Current - Continuous Drain (Id) @ 25°C:
10A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
550mOhm @ 5.3A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
43nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1400pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
125W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220AB
-
Package / Case:
TO-220-3
-
Base Part Number:
IRF7
