دیتاشیت TIP36C
مشخصات دیتاشیت
| نام دیتاشیت |
TIP35,36A,B,C
|
| حجم فایل |
134.536
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:

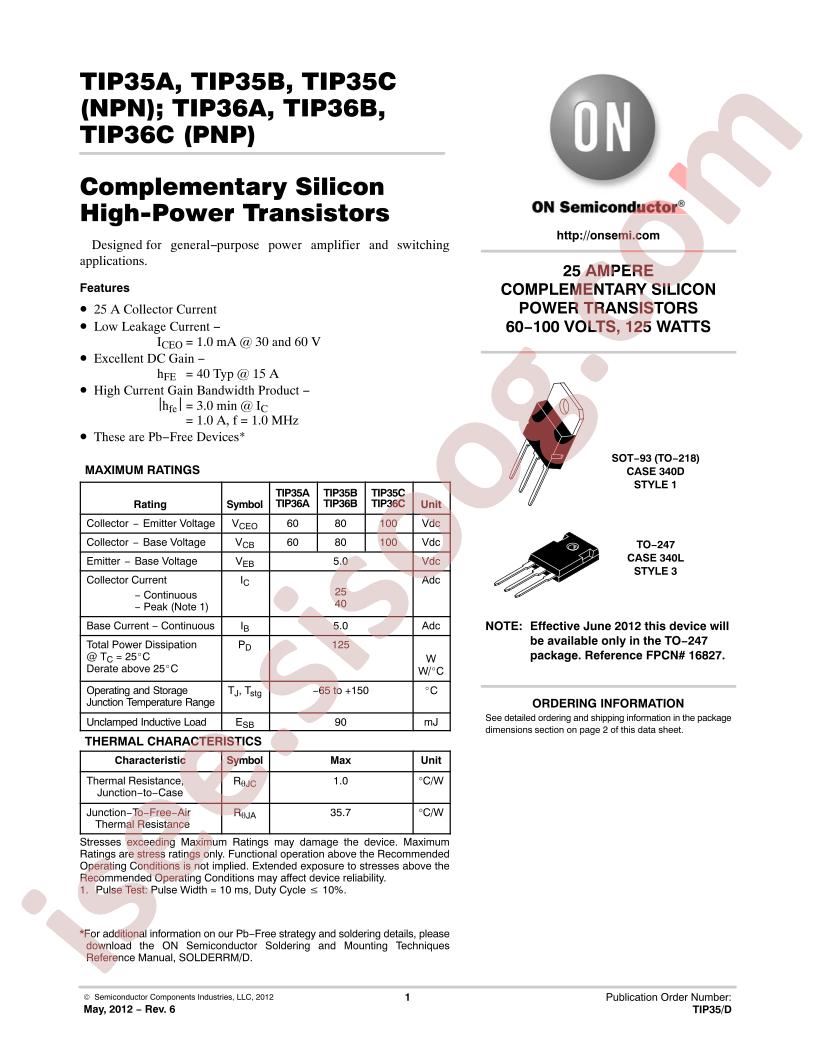

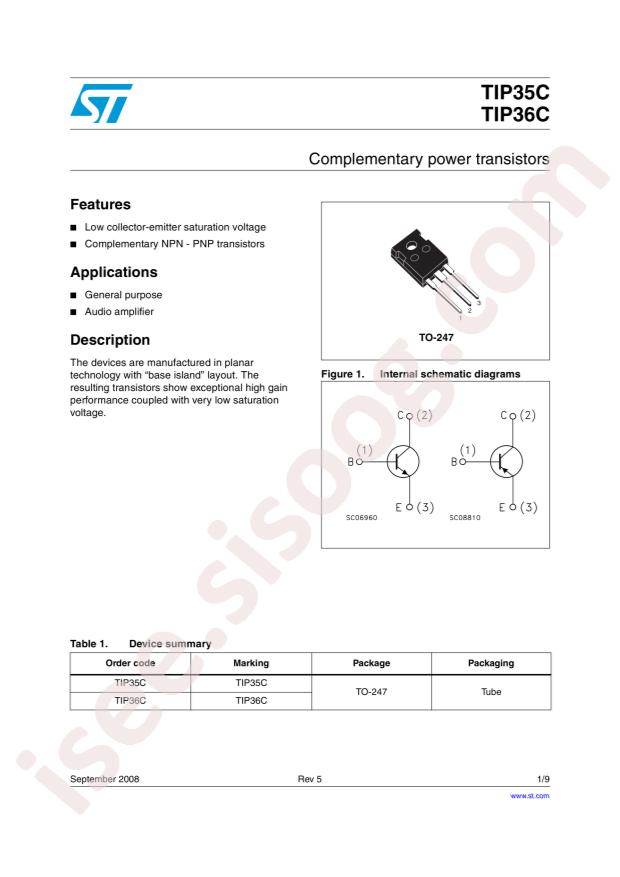

SPTECH TIP36C
-
Transistor Type:
PNP
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
25A
-
Power Dissipation (Pd):
125W
-
Transition Frequency (fT):
3MHz
-
DC Current Gain (hFE@Ic,Vce):
15@15A,4V
-
Collector Cut-Off Current (Icbo):
700uA
-
Collector-Emitter Breakdown Voltage (Vceo):
100V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
4V@25A,5A
-
Package:
TO-3PN
-
Manufacturer:
SPTECH
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
25A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
4V @ 5A, 25A
-
Current - Collector Cutoff (Max):
1mA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
15 @ 15A, 4V
-
Power - Max:
125W
-
Frequency - Transition:
3MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-218-3
-
Supplier Device Package:
SOT-93
-
Base Part Number:
TIP36
