دیتاشیت BC327

BC327

مشخصات دیتاشیت

نام دیتاشیت BC327
حجم فایل 247.869 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت BC327

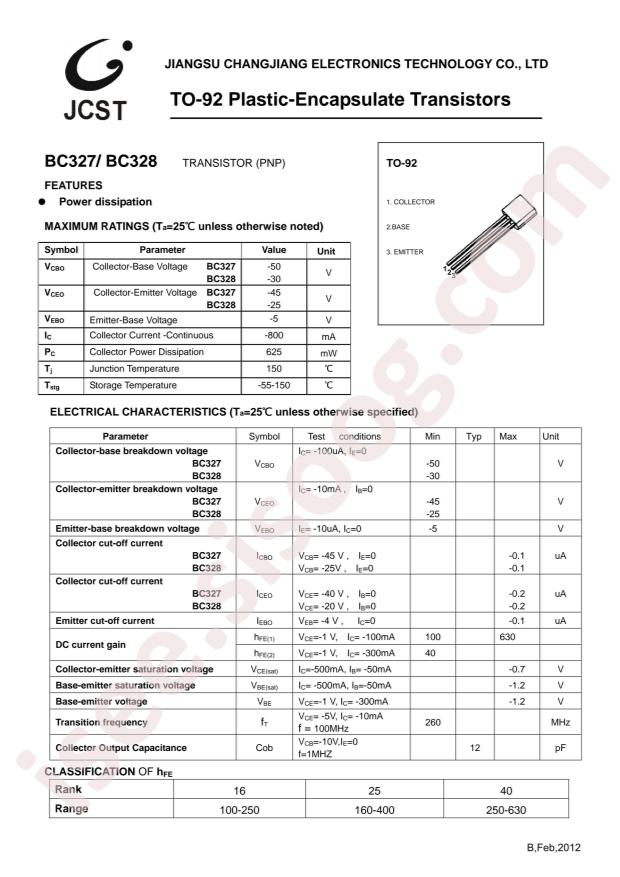

BC327 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: Jiangsu Changjing Electronics Technology Co., Ltd. BC327
  • Transistor Type: PNP
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 800mA
  • Power Dissipation (Pd): 625mW
  • Transition Frequency (fT): 260MHz
  • DC Current Gain (hFE@Ic,Vce): 160@100mA,1V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 45V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 700mV@500mA,50mA

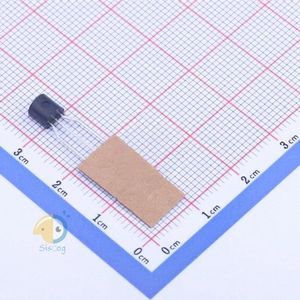

  • Package: TO-92
  • Manufacturer: Jiangsu Changjing Electronics Technology Co., Ltd.
  • Series: -
  • Packaging: Bulk
  • Part Status: Obsolete
  • Current - Collector (Ic) (Max): 800mA
  • Voltage - Collector Emitter Breakdown (Max): 45V
  • Vce Saturation (Max) @ Ib, Ic: 700mV @ 50mA, 500mA
  • Current - Collector Cutoff (Max): 100nA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 100mA, 1V
  • Power - Max: 625mW
  • Frequency - Transition: 260MHz
  • Mounting Type: Through Hole
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA)
  • Supplier Device Package: TO-92-3
  • Base Part Number: BC327
