TIP2955 دیتاشیت

TIP2955

مشخصات دیتاشیت

نام دیتاشیت TIP2955
حجم فایل 44.038 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت TIP2955

دانلود دیتاشیت

سایر مستندات

TO220B03 Pkg Drawing 1 pages

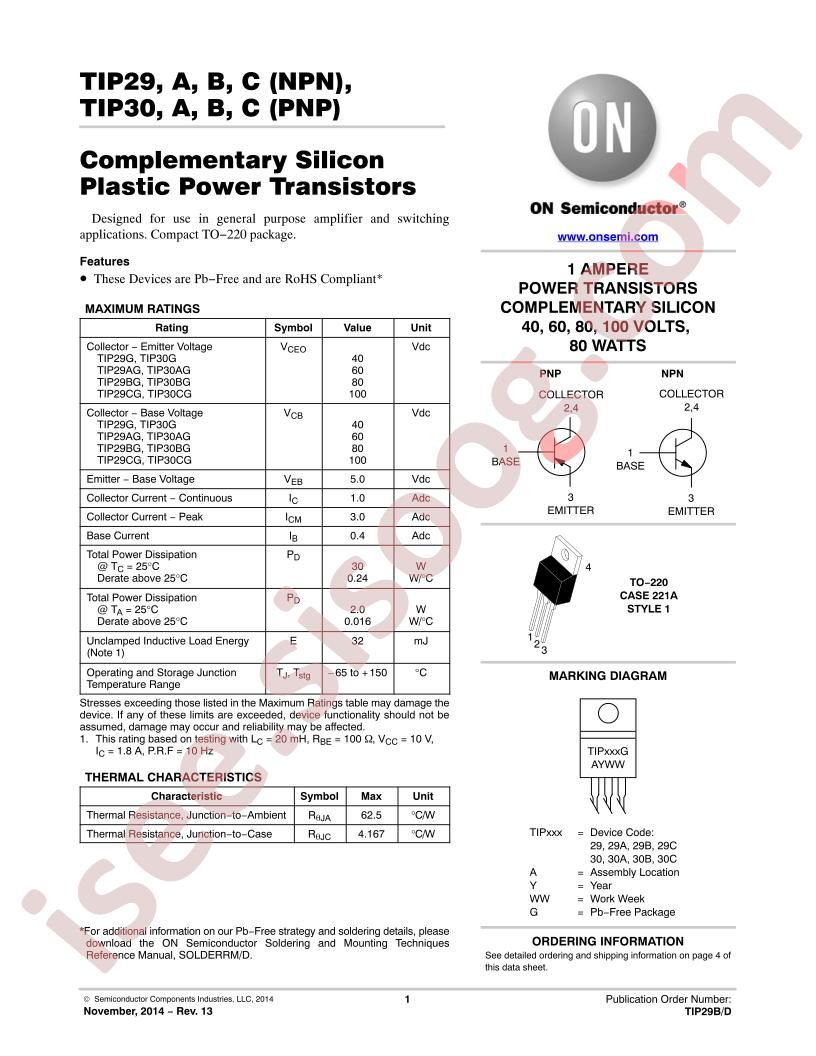

TIP29,30 A,B,C 5 pages

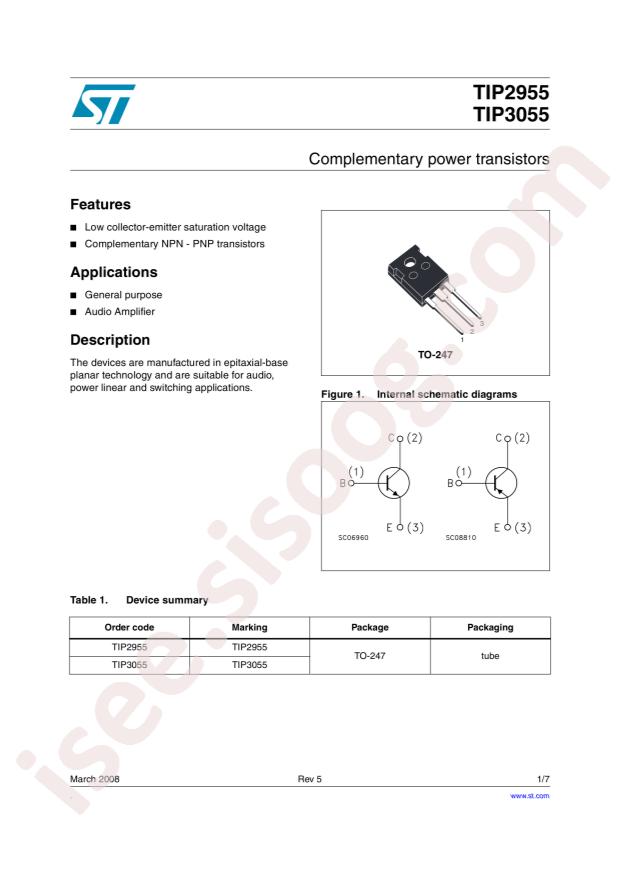

TIP2955 4 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: STMicroelectronics TIP2955
  • Transistor Type: PNP
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 15A
  • Power Dissipation (Pd): 90W
  • Transition Frequency (fT): -
  • DC Current Gain (hFE@Ic,Vce): 20@4A,4V
  • Collector Cut-Off Current (Icbo): -
  • Collector-Emitter Breakdown Voltage (Vceo): 60V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 3V@10A,3.3A
  • Package: TO-247AC-3
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Bulk
  • Part Status: Active
  • Current - Collector (Ic) (Max): 1A
  • Voltage - Collector Emitter Breakdown (Max): 40V
  • Vce Saturation (Max) @ Ib, Ic: 700mV @ 125mA, 1A
  • Current - Collector Cutoff (Max): 300µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 15 @ 1A, 4V
  • Power - Max: 2W
  • Frequency - Transition: 3MHz
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220-3
  • Base Part Number: TIP29
  • detail: Bipolar (BJT) Transistor NPN 40V 1A 3MHz 2W Through Hole TO-220-3
