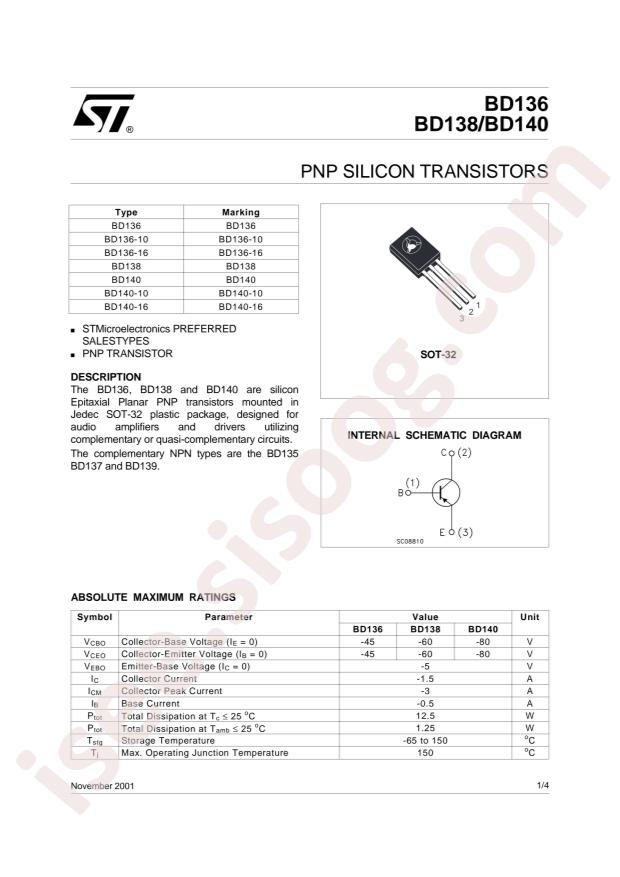

BD138 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | BD138 |
|---|---|
| حجم فایل | 61.299 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 4 |
دانلود دیتاشیت BD138 |
دانلود دیتاشیت |
|---|
سایر مستندات
BD136,138,140 5 pages
BD138 4 pages
مشخصات فنی
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: STMicroelectronics BD138
- Transistor Type: PNP
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 1.5A
- Power Dissipation (Pd): 12.5W
- Transition Frequency (fT): -
- DC Current Gain (hFE@Ic,Vce): 40@150mA,2V
- Collector Cut-Off Current (Icbo): 100nA
- Collector-Emitter Breakdown Voltage (Vceo): 60V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@500mA,50mA
- Package: SOT-32
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Bulk
- Part Status: Obsolete
- Current - Collector (Ic) (Max): 1.5A
- Voltage - Collector Emitter Breakdown (Max): 60V
- Vce Saturation (Max) @ Ib, Ic: 500mV @ 50mA, 500mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 40 @ 150mA, 2V
- Power - Max: 1.25W
- Frequency - Transition: -
- Mounting Type: Through Hole
- Package / Case: TO-225AA, TO-126-3
- Supplier Device Package: TO-225AA
- Base Part Number: BD138
