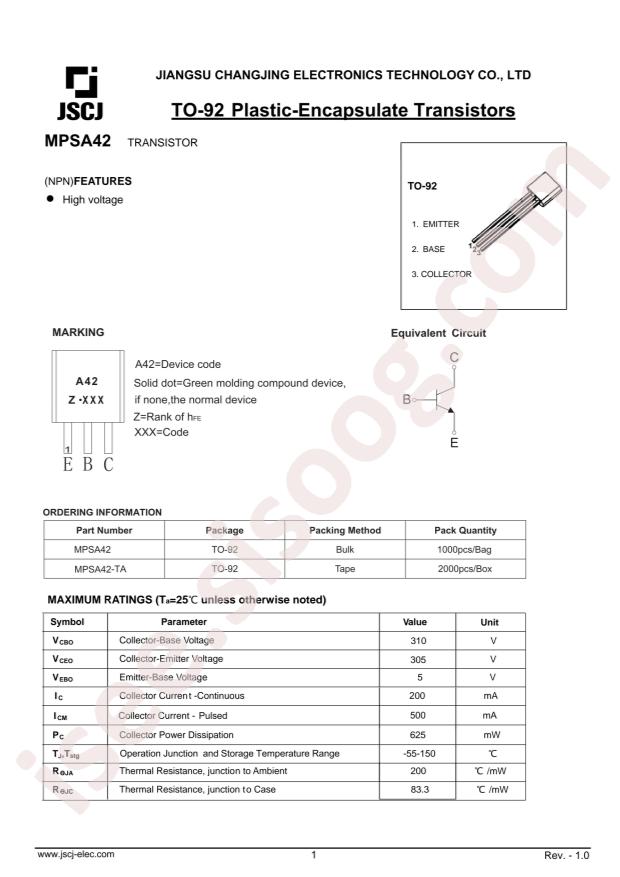

دیتاشیت MPSA42

MPSA42,43

مشخصات دیتاشیت

نام دیتاشیت MPSA42,43
حجم فایل 104.322 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت MPSA42,43

MPSA42,43 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: Foshan Blue Rocket Elec MPSA42
  • Transistor Type: NPN
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 500mA
  • Power Dissipation (Pd): 625mW
  • Transition Frequency (fT): 50MHz
  • DC Current Gain (hFE@Ic,Vce): 40@10mA,10V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 300V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@20mA,2mA
  • Package: TO-92L
  • Manufacturer: Foshan Blue Rocket Elec
  • Series: -
  • Packaging: Bulk
  • Part Status: Active
  • Current - Collector (Ic) (Max): 500mA
  • Voltage - Collector Emitter Breakdown (Max): 300V
  • Vce Saturation (Max) @ Ib, Ic: 500mV @ 2mA, 20mA
  • Current - Collector Cutoff (Max): 100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 40 @ 30mA, 10V
  • Power - Max: 625mW
  • Frequency - Transition: 50MHz
  • Mounting Type: Through Hole
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA)
  • Supplier Device Package: TO-92-3
  • Base Part Number: MPSA42
