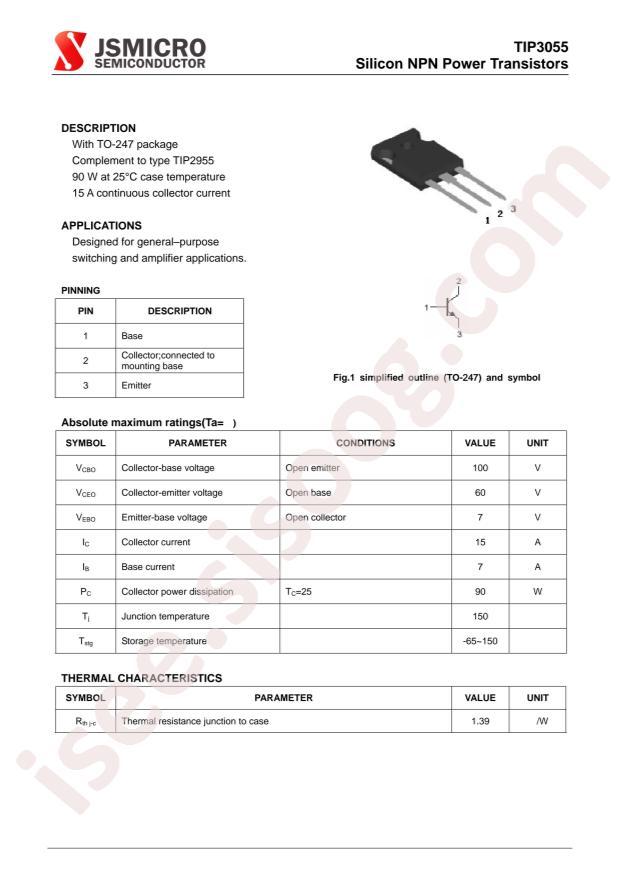

دیتاشیت TIP3055

TIP2955, TIP3055

مشخصات دیتاشیت

نام دیتاشیت TIP2955, TIP3055
حجم فایل 89.572 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

دانلود دیتاشیت TIP2955, TIP3055

TIP2955, TIP3055 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Package: TO-3PB
  • Manufacturer: ISC
  • Datasheet: STMicroelectronics TIP3055
  • Transistor Type: NPN
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 15A
  • Power Dissipation (Pd): 90W
  • Transition Frequency (fT): -
  • DC Current Gain (hFE@Ic,Vce): 20@4A,4V
  • Collector Cut-Off Current (Icbo): -
  • Collector-Emitter Breakdown Voltage (Vceo): 100V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 3V@10A,3.3A
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Current - Collector (Ic) (Max): 15A
  • Voltage - Collector Emitter Breakdown (Max): 60V
  • Vce Saturation (Max) @ Ib, Ic: 3V @ 3.3A, 10A
  • Current - Collector Cutoff (Max): 700µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 4A, 4V
  • Power - Max: 90W
  • Frequency - Transition: -
  • Mounting Type: Through Hole
  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247-3
  • Base Part Number: TIP3055
