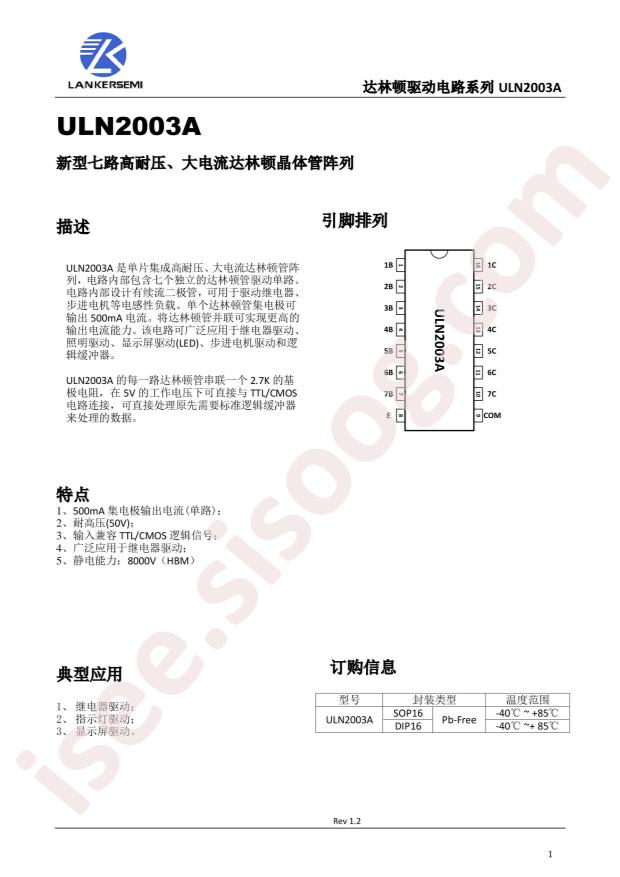

دیتاشیت ULN2003A
مشخصات دیتاشیت
| نام دیتاشیت |
ULN200x(A,D1)
|
| حجم فایل |
773.001
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistor Arrays
-
Datasheet:
STMicroelectronics ULN2003A
-
Package:
DIP-16
-
Manufacturer:
STMicroelectronics
-
Collector Current(Ic):
500mA
-
Input current (Ii@Vi):
4mA@12V
-
Operating Temperature:
-
-
Input Capacitance (Ci):
25pF
-
Output leakage current (Icex@Vce):
100uA@40V
-
Clamp Diode Forward Voltage (VF@IF):
1.6V@350mA
-
Clamp Diode Leakage Current (IR@VR):
100uA@50V
-
ON-state input voltage(VI(on)@Vce,Ic):
3V@2V,300mA
-
Off-state input current (Ii(off)@Vce,Ic):
-
-
Collector-emitter saturation voltage (VCE(sat)@Ii,Ic):
1.25V@350mA
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Transistor Type:
7 NPN Darlington
-
Current - Collector (Ic) (Max):
500mA
-
Voltage - Collector Emitter Breakdown (Max):
50V
-
Vce Saturation (Max) @ Ib, Ic:
1.6V @ 500µA, 350mA
-
Current - Collector Cutoff (Max):
50µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
1000 @ 350mA, 2V
-
Power - Max:
-
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
16-DIP (0.300", 7.62mm)
-
Supplier Device Package:
16-DIP
-
Base Part Number:
ULN2003
