دیتاشیت MJE13003
مشخصات دیتاشیت
| نام دیتاشیت |
MJE13003
|
| حجم فایل |
110.044
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:

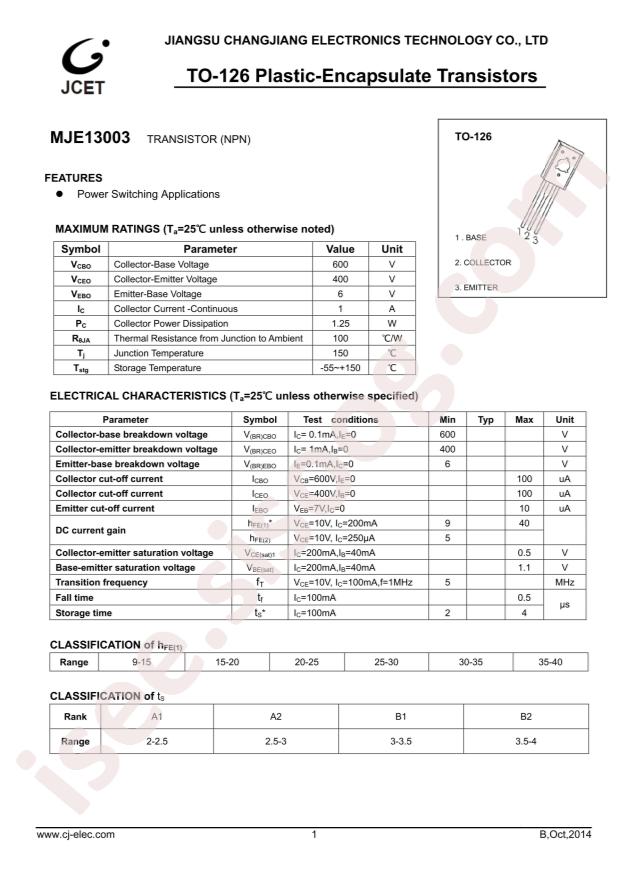

Jiangsu Changjing Electronics Technology Co., Ltd. MJE13003
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
1A
-
Power Dissipation (Pd):
1.25W
-
Transition Frequency (fT):
5MHz
-
DC Current Gain (hFE@Ic,Vce):
20@200mA,10V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
400V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
500mV@200mA,40mA
-
Package:
TO-126
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
-
Series:
SWITCHMODE™
-
Packaging:
Bulk
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
1.5A
-
Voltage - Collector Emitter Breakdown (Max):
400V
-
Vce Saturation (Max) @ Ib, Ic:
3V @ 500mA, 1.5A
-
Current - Collector Cutoff (Max):
-
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
8 @ 500mA, 2V
-
Power - Max:
1.4W
-
Frequency - Transition:
10MHz
-
Mounting Type:
Through Hole
-
Package / Case:
TO-225AA, TO-126-3
-
Supplier Device Package:
TO-225AA
-
Base Part Number:
MJE13
-
detail:
Bipolar (BJT) Transistor NPN 400V 1.5A 10MHz 1.4W Through Hole TO-225AA
