دیتاشیت IRF630

IRF630(FP)

مشخصات دیتاشیت

نام دیتاشیت IRF630(FP)
حجم فایل 458.453 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت IRF630(FP)

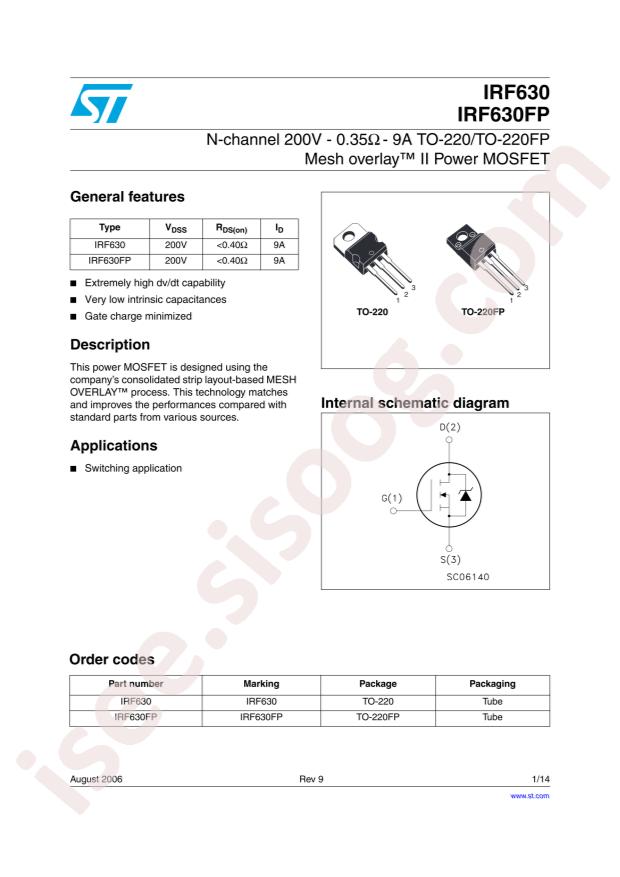

IRF630(FP) Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs

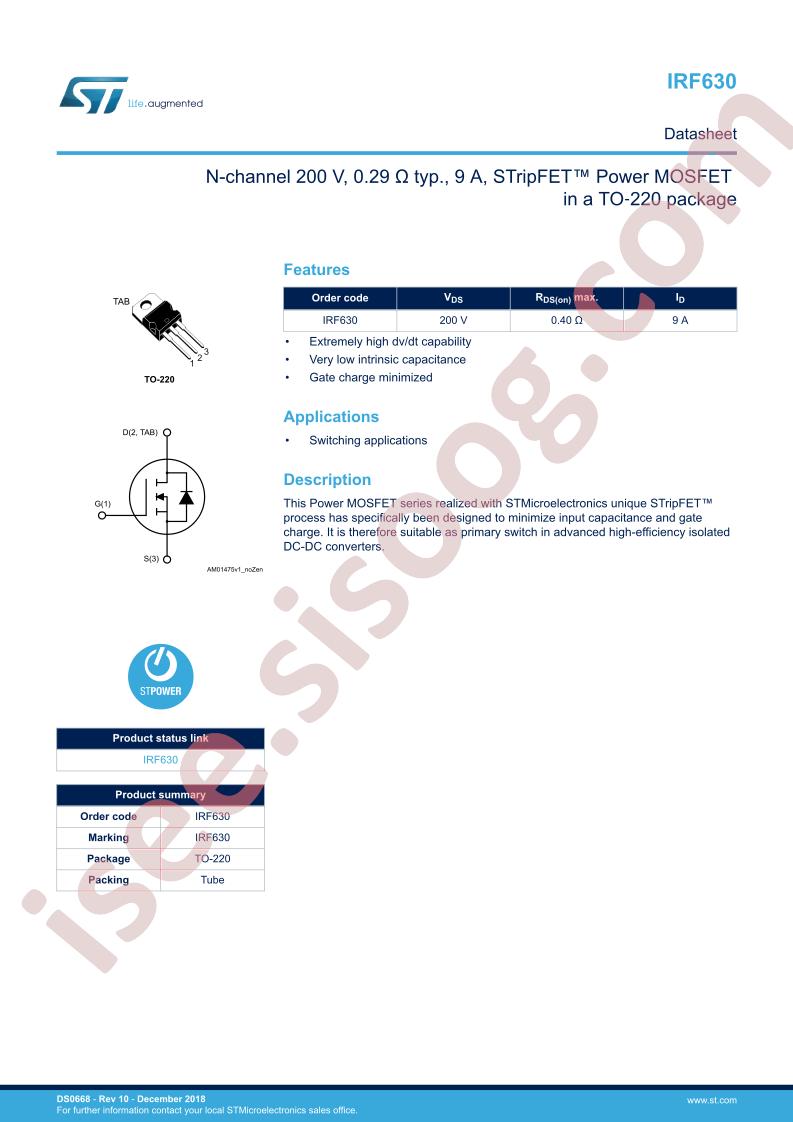

  • Datasheet: STMicroelectronics IRF630
  • Operating Temperature: -65°C~+150°C@(Tj)
  • Power Dissipation (Pd): 75W
  • Total Gate Charge (Qg@Vgs): 45nC@10V
  • Drain Source Voltage (Vdss): 200V
  • Input Capacitance (Ciss@Vds): 700pF@25V
  • Continuous Drain Current (Id): 9A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 400mΩ@10V,4.5A
  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: MESH OVERLAY™ II
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 200V
  • Current - Continuous Drain (Id) @ 25°C: 9A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 400mOhm @ 4.5A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 45nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 700pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 75W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • Base Part Number: IRF6
