دیتاشیت 1N5819

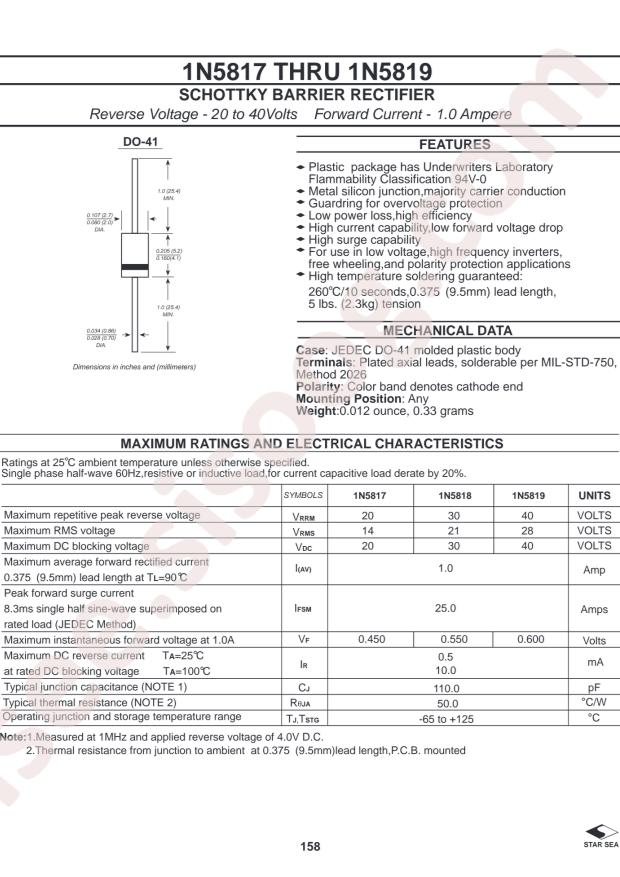

1N5817 - 19 Datasheet

مشخصات دیتاشیت

نام دیتاشیت 1N5817 - 19 Datasheet
حجم فایل 141.812 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت 1N5817 - 19 Datasheet

1N5817 - 19 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: HL(Haolin Elec) 1N5819
  • Reverse Voltage (Vr): 40V
  • Forward Voltage (Vf@If): 600mV@1A
  • Average Rectified Current (Io): 1A
  • Package: DO-41
  • Manufacturer: HL(Haolin Elec)
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Last Time Buy
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 40V
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 600mV @ 1A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 500µA @ 40V
  • Capacitance @ Vr, F: 110pF @ 4V, 1MHz
  • Mounting Type: Through Hole
  • Package / Case: DO-204AL, DO-41, Axial
  • Supplier Device Package: DO-204AL (DO-41)
  • Operating Temperature - Junction: -65°C ~ 125°C
  • Base Part Number: 1N5819
