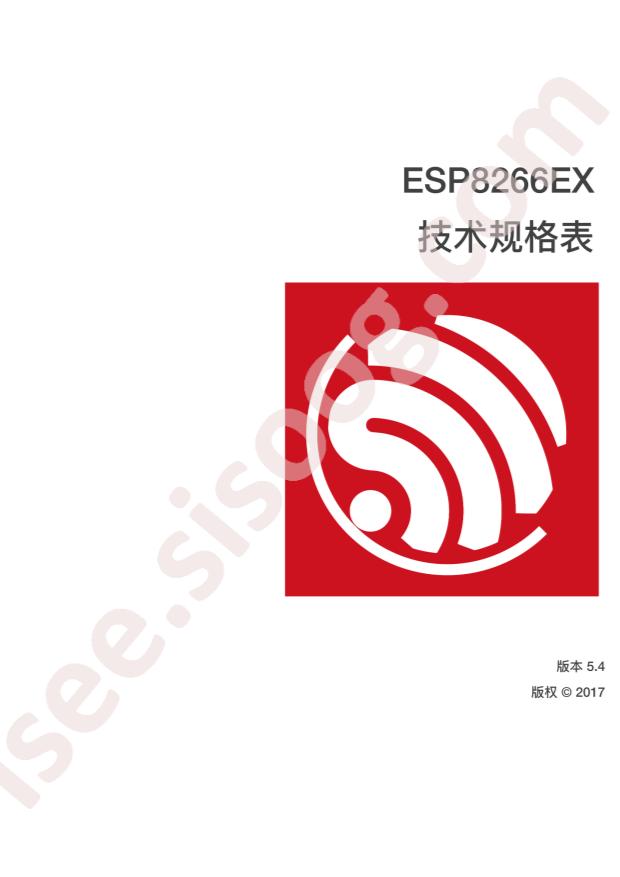

ESP8266EX دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | ESP8266EX |
|---|---|
| حجم فایل | 32.257 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 29 |
دانلود دیتاشیت ESP8266EX |
دانلود دیتاشیت |
|---|
سایر مستندات
ESP8266 Quick Start Guide 24 pages
ESP8266EX 30 pages
مشخصات فنی
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
- Data Rate: 54Mbps
- Datasheet: Espressif Systems ESP8266EX
- Interface: I2C,I2S,SPI,UART
- Applications: WiFi
- Frequency Range: 2.4GHz
- Receive Current: 50mA
- Operating Voltage: 2.5V~3.6V
- Current Of Transmitting: 120mA
- Package: QFN-32-EP(5x5)
- Manufacturer: Espressif Systems
- Series: -
- Packaging: Digi-Reel®
- Part Status: Active
- Type: TxRx + MCU
- RF Family/Standard: WiFi
- Protocol: 802.11b/g/n
- Modulation: -
- Frequency: 2.4GHz
- Data Rate (Max): 54Mbps
- Power - Output: 20dBm
- Sensitivity: -91dBm
- Memory Size: -
- Serial Interfaces: I²C, I²S, SPI, UART
- GPIO: 8
- Voltage - Supply: 2.5V ~ 3.6V
- Current - Receiving: 50mA ~ 56mA
- Current - Transmitting: 120mA ~ 170mA
- Mounting Type: Surface Mount
- Package / Case: 32-VFQFN Exposed Pad
- Supplier Device Package: 32-QFN (5x5)
