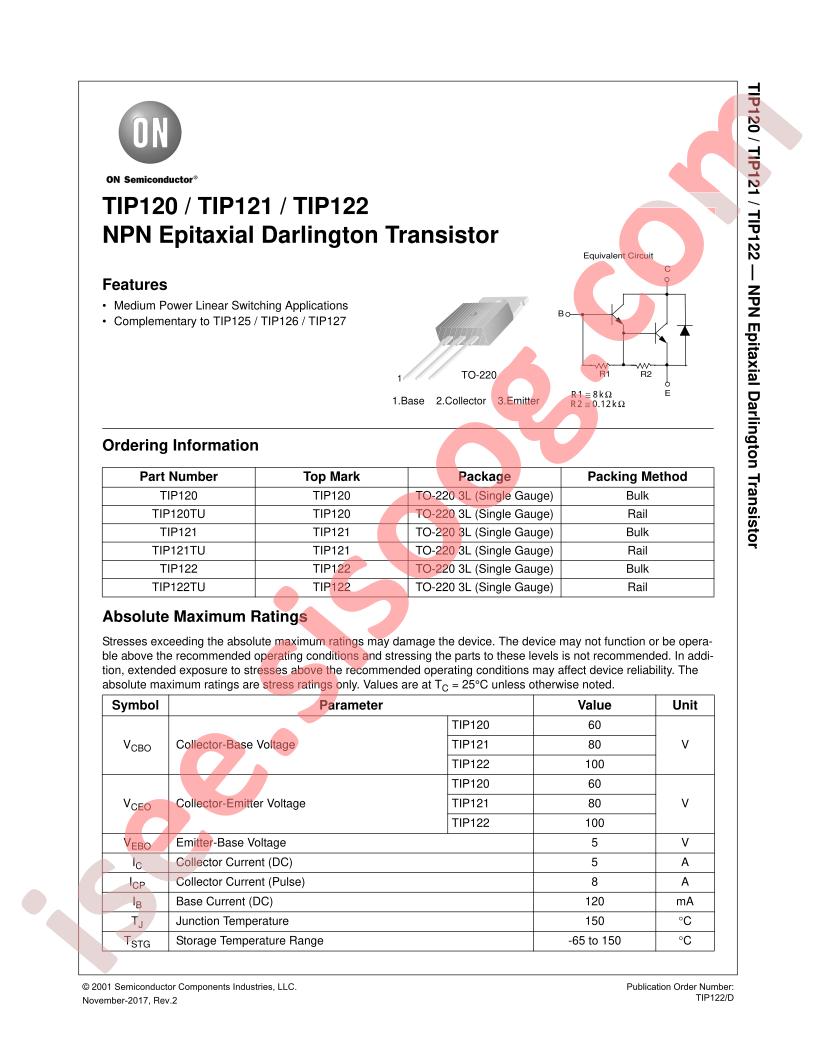

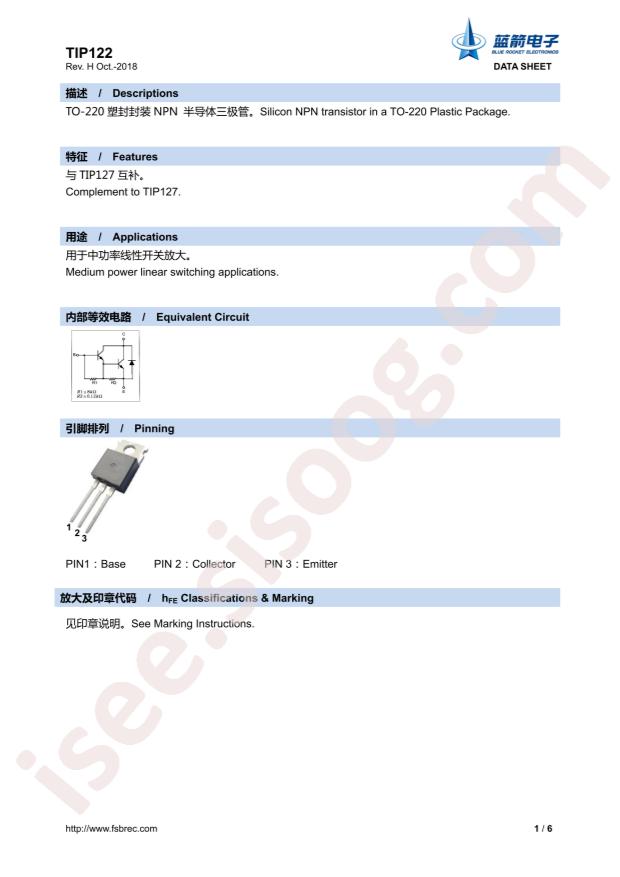

دیتاشیت TIP122
مشخصات دیتاشیت
| نام دیتاشیت |
TIP120-22
|
| حجم فایل |
289.462
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistors
-
Datasheet:
Jiangsu Changjing Electronics Technology Co., Ltd. TIP122
-
Package:
TO-126
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
-
Transistor Type:
NPN
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Collector Current (Ic):
5A
-
Power Dissipation (Pd):
65W
-
Transition frequency (fT):
-
-
DC current gain (hFE@Vce,Ic):
1000@3V,3A
-
Collector-emitter voltage (Vceo):
100V
-
Collector cut-off current (Icbo@Vcb):
200uA@100V
-
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib):
4V@5A,20mA
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
5A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
4V @ 20mA, 5A
-
Current - Collector Cutoff (Max):
500µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
1000 @ 3A, 3V
-
Power - Max:
2W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
TIP122
