دیتاشیت 2N3904
مشخصات دیتاشیت
| نام دیتاشیت | 2N3904 Preliminary Datasheet |
|---|---|
| حجم فایل | 62.279 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت 2N3904 Preliminary Datasheet |

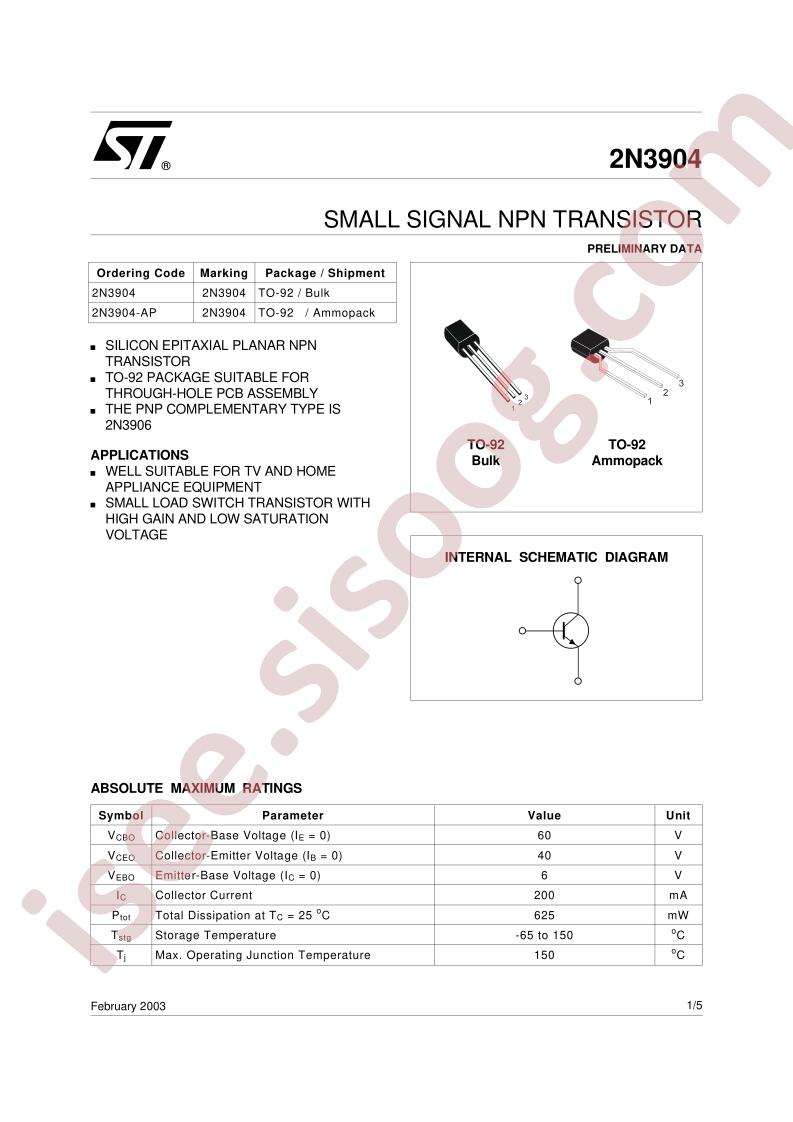

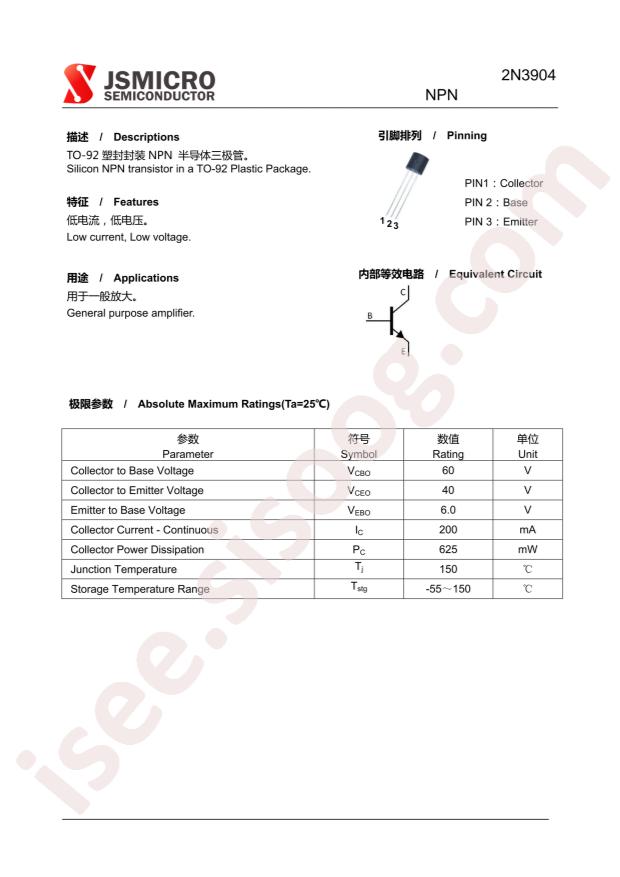

2N3904 Preliminary Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: Slkor(SLKORMICRO Elec.) 2N3904
- Transistor Type: NPN
- Operating Temperature: +150°C@(Tj)
- Collector Current (Ic): 0.2A
- Power Dissipation (Pd): 625mW
- Transition Frequency (fT): 300MHz
- DC Current Gain (hFE@Ic,Vce): 10@10mA,1V
- Collector Cut-Off Current (Icbo): 50nA
- Collector-Emitter Breakdown Voltage (Vceo): 40V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 300mV@50mA,5mA
- Package: TO-92
- Manufacturer: Slkor(SLKORMICRO Elec.)
- Series: -
- Packaging: Bulk
- Part Status: Obsolete
- Current - Collector (Ic) (Max): 200mA
- Voltage - Collector Emitter Breakdown (Max): 40V
- Vce Saturation (Max) @ Ib, Ic: 200mV @ 5mA, 50mA
- Current - Collector Cutoff (Max): -
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 1V
- Power - Max: 625mW
- Frequency - Transition: 270MHz
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package: TO-92-3
- Base Part Number: 2N39
