NRF24L01 Datasheet

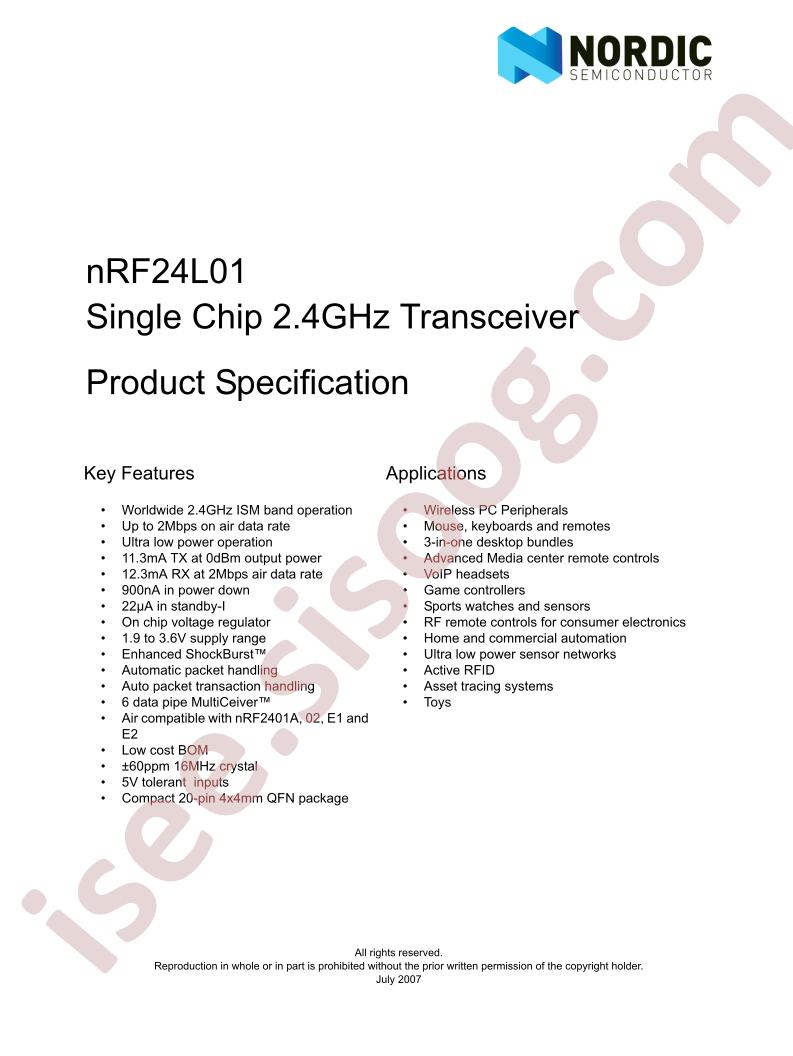

NRF24L01 Specification

Datasheet specifications

Datasheet's name NRF24L01 Specification
File size 1021.051 KB
File type pdf
Number of pages 74

Download Datasheet NRF24L01 Specification

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
  • Data Rate: 2Mbps
  • Interface: SPI
  • Applications: General-purpose ISM>1GHz
  • Frequency Range: 2.4GHz
  • Receive Current: 11.1mA
  • Operating Voltage: 1.9V~3.6V
  • Operating Temperature: -40°C~+85°C
  • Current Of Transmitting: 7mA
  • Package: QFN-20-EP(4x4)
  • Manufacturer: Nordic Semicon
  • Series: -
  • Packaging: Tray
  • Part Status: Active
  • Type: TxRx Only
  • RF Family/Standard: General ISM > 1GHZ
  • Protocol: -
  • Modulation: GFSK
  • Frequency: 2.4GHz
  • Data Rate (Max): 2Mbps
  • Power - Output: 0dBm
  • Sensitivity: -85dBm
  • Memory Size: -
  • Serial Interfaces: SPI
  • Voltage - Supply: 1.9V ~ 3.6V
  • Current - Receiving: 11.1mA ~ 12.3mA
  • Current - Transmitting: 7mA ~ 11.3mA
  • Mounting Type: Surface Mount
  • Package / Case: 20-VFQFN Exposed Pad
  • Supplier Device Package: 20-QFN (4x4)
  • detail: IC RF TxRx Only General ISM > 1GHZ 2.4GHz 20-VFQFN Exposed Pad
