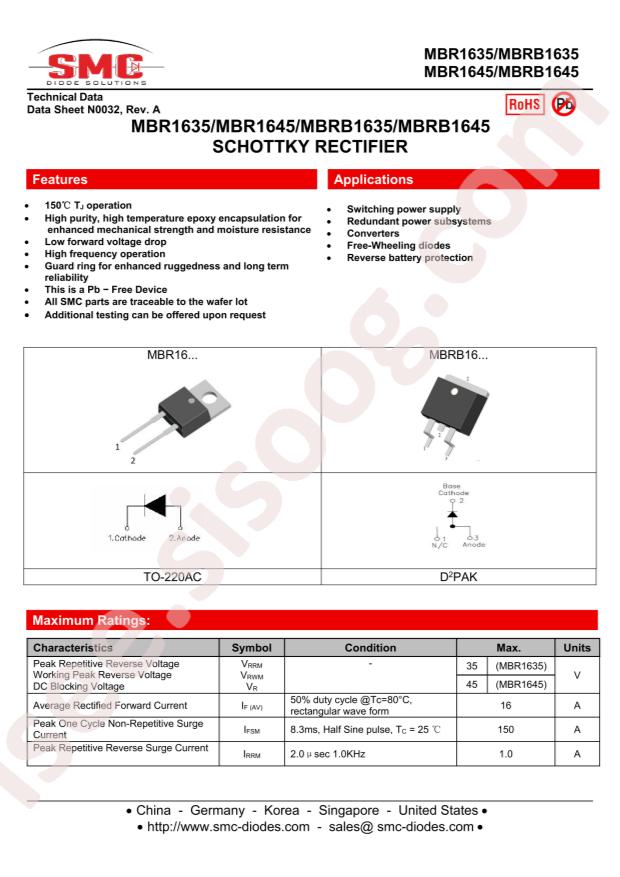

MBR1645 دیتاشیت

MBR1645

مشخصات دیتاشیت

نام دیتاشیت MBR1645
حجم فایل 78.404 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت MBR1645

دانلود دیتاشیت

سایر مستندات

MBR(B)16x5, NRVBB1645 5 pages

MBR1645 5 pages

MBR1645 2 pages

MBR1645 3 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: SMC(Sangdest Microelectronicstronic (Nanjing)) MBR1645
  • Reverse Voltage (Vr): 45V
  • Forward Voltage (Vf@If): 630mV@16A
  • Reverse Leakage Current (Ir): 1mA@45V
  • Average Rectified Current (Io): 16A
  • Package: TO-220-2
  • Manufacturer: SMC(Sangdest Microelectronicstronic (Nanjing))
  • Series: SWITCHMODE™
  • Packaging: Tube
  • Part Status: Obsolete
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 45V
  • Current - Average Rectified (Io): 16A
  • Voltage - Forward (Vf) (Max) @ If: 630mV @ 16A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 200µA @ 45V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-2
  • Supplier Device Package: TO-220-2
  • Operating Temperature - Junction: -65°C ~ 175°C
  • Base Part Number: MBR1645
