技术规格
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers

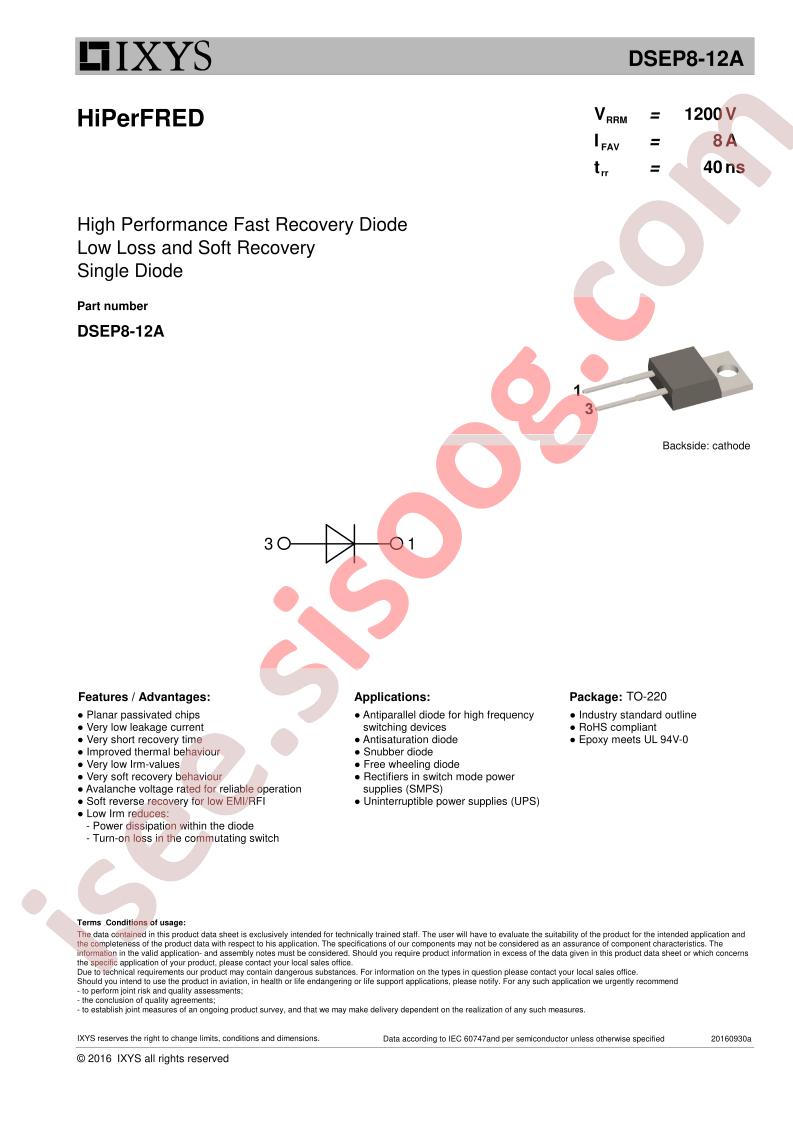

- Datasheet: IXYS DSEP8-12A
- Diode Configuration: Single
- Reverse Voltage (Vr): 1.2kV
- Operating Temperature: -55°C~+175°C@(Tvj)
- Forward Voltage (Vf@If): 2.94V@10A
- Reverse Leakage Current: 60uA@1.2kV
- Reverse Recovery Time (trr): 40ns
- Average Rectified Current (Io): 8A
- Package: TO-220-2
- Manufacturer: IXYS
- Series: HiPerFRED™
- Packaging: Tube
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1200V
- Current - Average Rectified (Io): 10A
- Voltage - Forward (Vf) (Max) @ If: 2.94V @ 10A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 60µA @ 1200V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: TO-220-2
- Supplier Device Package: TO-220AC
- Operating Temperature - Junction: -55°C ~ 175°C
- detail: Diode Standard 1200V 10A Through Hole TO-220AC
