SN74LS06DR دیتاشیت

SN74LS06DR

مشخصات دیتاشیت

نام دیتاشیت SN74LS06DR
حجم فایل 74.026 کیلوبایت
نوع فایل pdf
تعداد صفحات 27

دانلود دیتاشیت SN74LS06DR

دانلود دیتاشیت

سایر مستندات

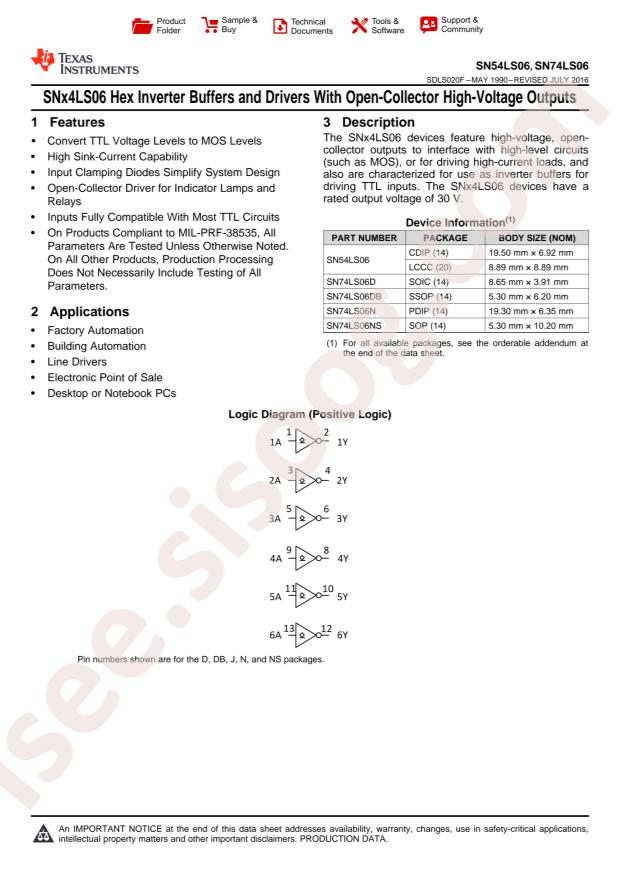

SN54LS06, SN74LS06, SN74LS16 27 pages

مشخصات فنی

  • RoHS: true
  • Series: 74LS
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74LS06DR
  • Sink Current: 40mA
  • Number of Inputs: 1
  • Number of Circuits: 6
  • Low level range (VIL): 0.8V
  • Max Propagation Delay: 20ns@5V,15pF
  • Operating Temperature: 0°C~+70°C
  • High level range (VIH): 2V
  • Supply Voltage(Single): 4.75V~5.25V
  • Package: SOP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.8V
  • Voltage - Supply: 4.75V ~ 5.25V
  • Packaging: Cut Tape (CT)
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Logic Level - High: 2V
  • Part Status: Active
  • Current - Output High, Low: -, 40mA
  • Features: Open Collector
  • Base Part Number: SN74LS06
  • Supplier Device Package: 14-SOIC
  • Logic Type: Inverter
  • Max Propagation Delay @ V, Max CL: 20ns @ 5V, 15pF
  • detail: Inverter IC 6 Channel Open Collector 14-SOIC
