SN74HCT04N دیتاشیت

SN74HCT04N

مشخصات دیتاشیت

نام دیتاشیت SN74HCT04N
حجم فایل 80.167 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت SN74HCT04N

دانلود دیتاشیت

سایر مستندات

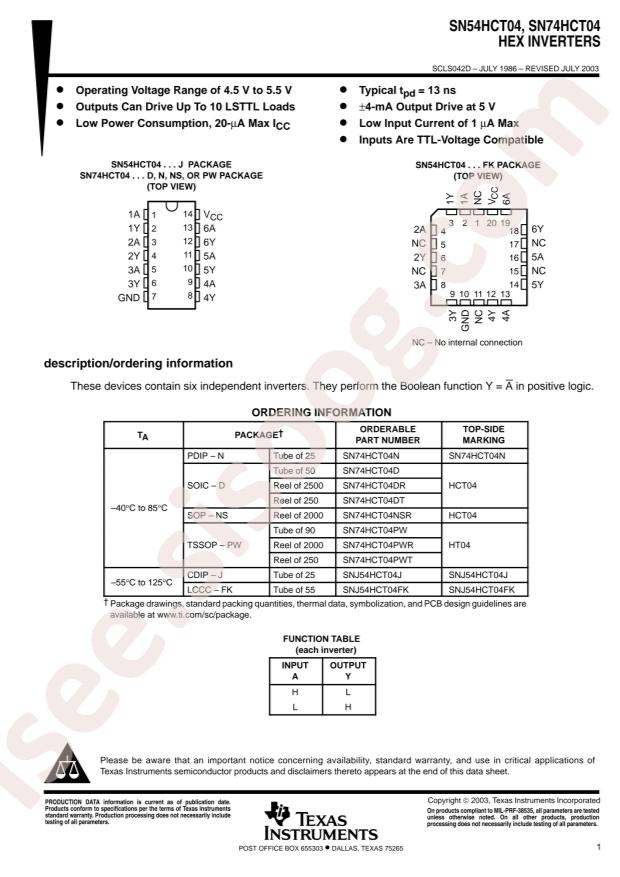

SN54HCT04, SN74HCT04 21 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HCT
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74HCT04N
  • Input Type: -
  • Sink Current: 4mA
  • Source Current: 4mA
  • Number of Inputs: 1
  • Number of Circuits: 6
  • Supply Current (Max): 2uA
  • Low level range (VIL): 0.8V
  • Max Propagation Delay: 18ns@5.5V,50pF
  • Operating Temperature: -40°C~+85°C
  • High level range (VIH): 2V
  • Supply Voltage(Single): 4.5V~5.5V
  • Package: DIP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Logic Level - Low: 0.8V
  • Current - Quiescent (Max): 2µA
  • Voltage - Supply: 4.5V ~ 5.5V
  • Packaging: Tube
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Logic Level - High: 2V
  • Part Status: Active
  • Current - Output High, Low: 4mA, 4mA
  • Features: -
  • Base Part Number: SN74HCT
  • Supplier Device Package: 14-PDIP
  • Logic Type: Inverter
  • Max Propagation Delay @ V, Max CL: 18ns @ 5.5V, 50pF
  • detail: Inverter IC 6 Channel 14-PDIP
