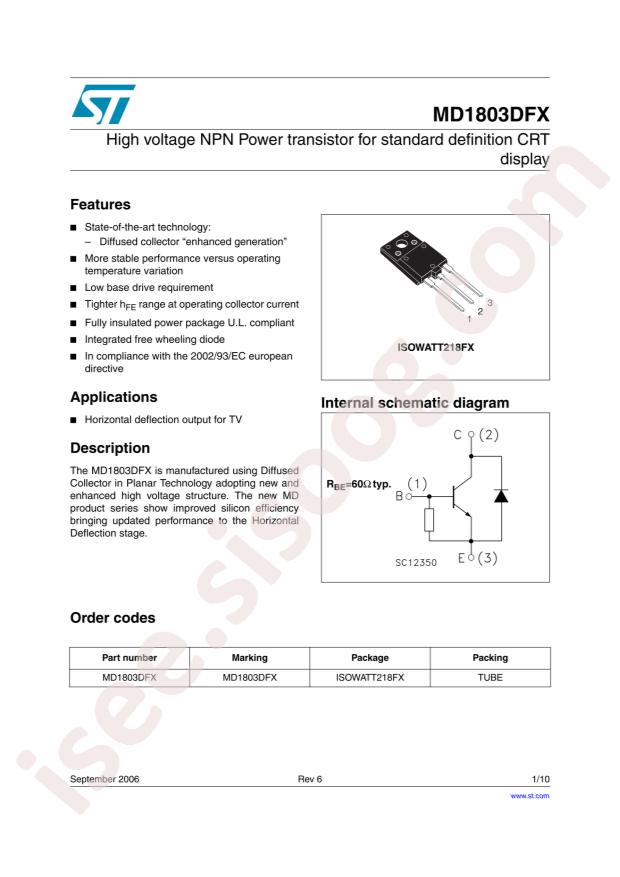

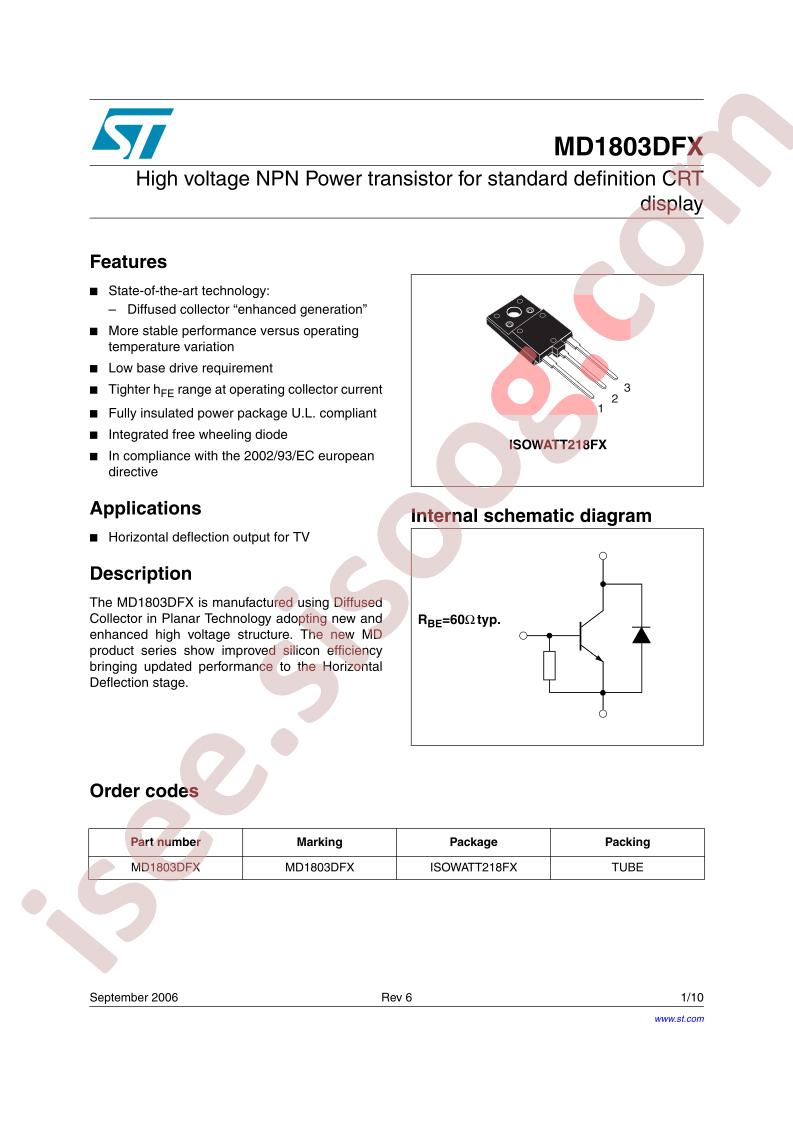

دیتاشیت MD1803DFX
مشخصات دیتاشیت
| نام دیتاشیت |
MD1803DFX
|
| حجم فایل |
207.804
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
STMicroelectronics MD1803DFX
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
10A
-
Power Dissipation (Pd):
57W
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
5.5@5A,5V
-
Collector Cut-Off Current (Icbo):
-
-
Collector-Emitter Breakdown Voltage (Vceo):
700V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
2V@5A,1.25A
-
Package:
ISOWATT-218FX
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
10A
-
Voltage - Collector Emitter Breakdown (Max):
700V
-
Vce Saturation (Max) @ Ib, Ic:
2V @ 1.25A, 5A
-
Current - Collector Cutoff (Max):
200µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
5.5 @ 5A, 5V
-
Power - Max:
57W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
ISOWATT218FX
-
Supplier Device Package:
ISOWATT-218FX
-
Base Part Number:
MD1803
-
detail:
Bipolar (BJT) Transistor NPN 700V 10A 57W Through Hole ISOWATT-218FX
