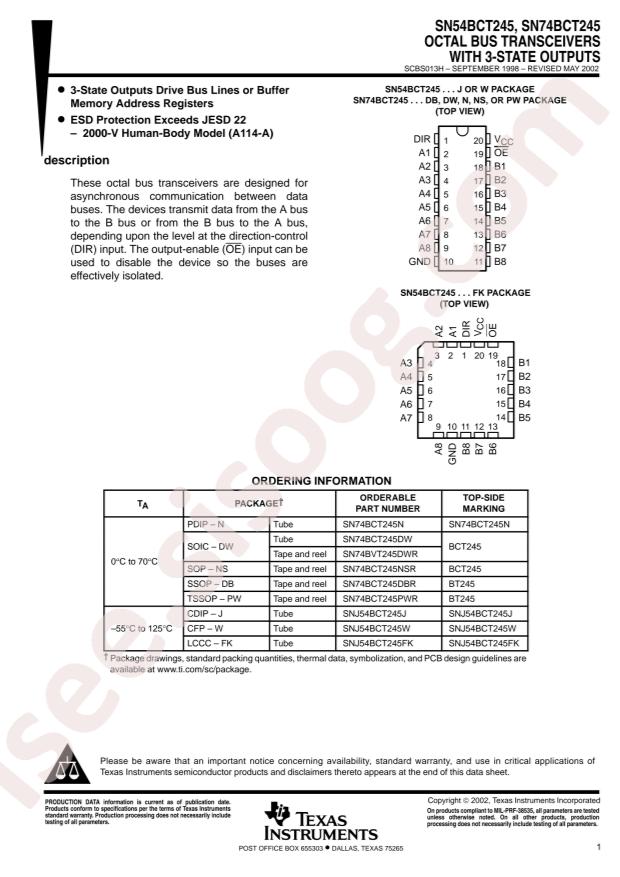

دیتاشیت SN74BCT245N
مشخصات دیتاشیت
| نام دیتاشیت | SN74BCT245N |
|---|---|
| حجم فایل | 85.314 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
SN74BCT245N |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
SN54/74BCT245 25 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74BCT245N
- output type: Tri-State
- Logic Family: 74BCT
- Sink Current: 24mA;64mA
- Source Current: 3mA;15mA
- Supply Voltage: 4.5V~5.5V
- Number of Elements: 1
- Operating Temperature: 0°C~+70°C
- Number of Bits per Element: 8
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Voltage - Supply: 4.5V ~ 5.5V
- Input Type: -
- Package / Case: 20-DIP (0.300", 7.62mm)
- Series: 74BCT
- Base Part Number: SN74BCT
- Supplier Device Package: 20-PDIP
- Mounting Type: Through Hole
- Logic Type: Transceiver, Non-Inverting
- Packaging: Tube
- Current - Output High, Low: 3mA, 24mA; 15mA, 64mA
- Part Status: Active
- detail: Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-PDIP
