دیتاشیت LMC6035IMXQ1
مشخصات دیتاشیت
| نام دیتاشیت | LMC6035(-Q1), LMC6036 |
|---|---|
| حجم فایل | 1949.131 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 33 |
دانلود دیتاشیت LMC6035(-Q1), LMC6036 |

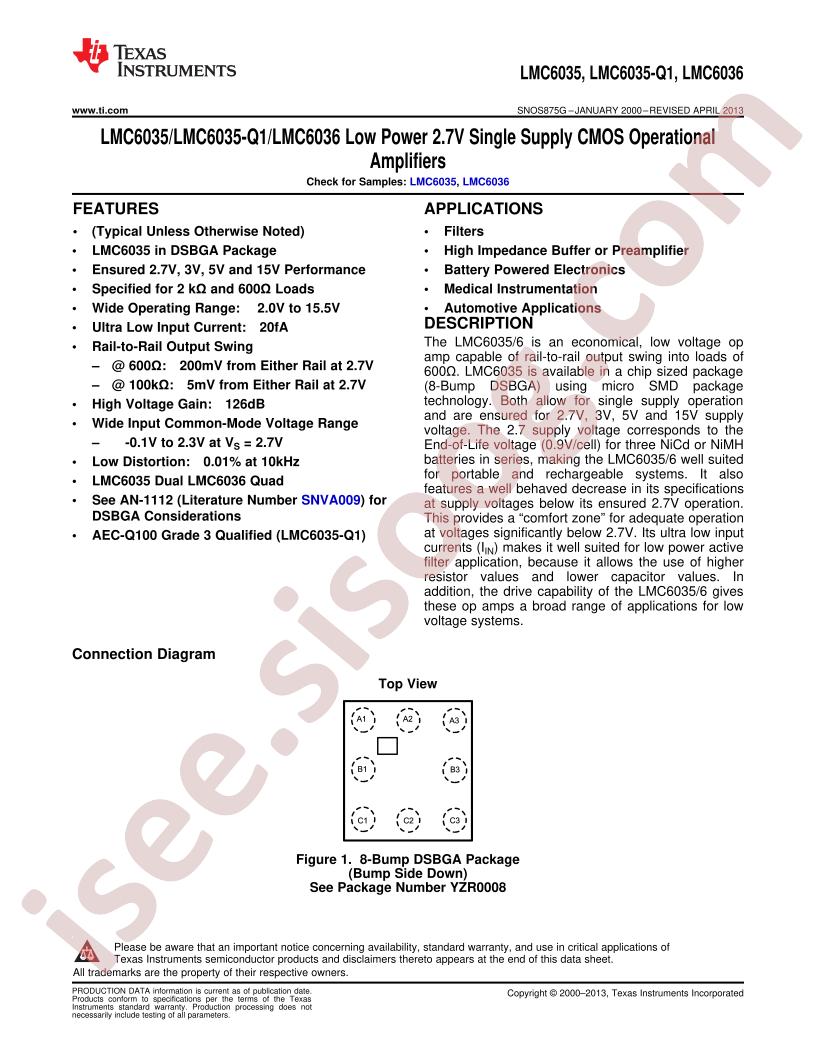

LMC6035(-Q1), LMC6036 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Texas Instruments LMC6035IMXQ1
- Rail to Rail: Differential;轨到轨
- -3db Bandwidth: -
- Output Current: 8mA
- Operating Temperature: -40°C~+85°C
- Current - Input Bias(Ib): 0.02pA
- Gain Bandwidth Product(GBP): 1.4MHz
- Package: SOP-8
- Manufacturer: Texas Instruments
- Series: Automotive, AEC-Q100
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Number of Circuits: 2
- Current - Supply: 650µA
- Voltage - Input Offset: 500µV
- Mounting Type: Surface Mount
- Part Status: Active
- Slew Rate: 1.5V/µs
- Voltage - Supply, Single/Dual (±): 2V ~ 15.5V, ±1V ~ 7.75V
- Gain Bandwidth Product: 1.4MHz
- Amplifier Type: General Purpose
- Current - Output / Channel: 8mA
- Packaging: Cut Tape (CT)
- Base Part Number: LMC6035
- Current - Input Bias: 0.02pA
- Output Type: Rail-to-Rail
- Supplier Device Package: 8-SOIC
