دیتاشیت STPS20H100CT

STPS20H100C

مشخصات دیتاشیت

نام دیتاشیت STPS20H100C
حجم فایل 369.697 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت STPS20H100C

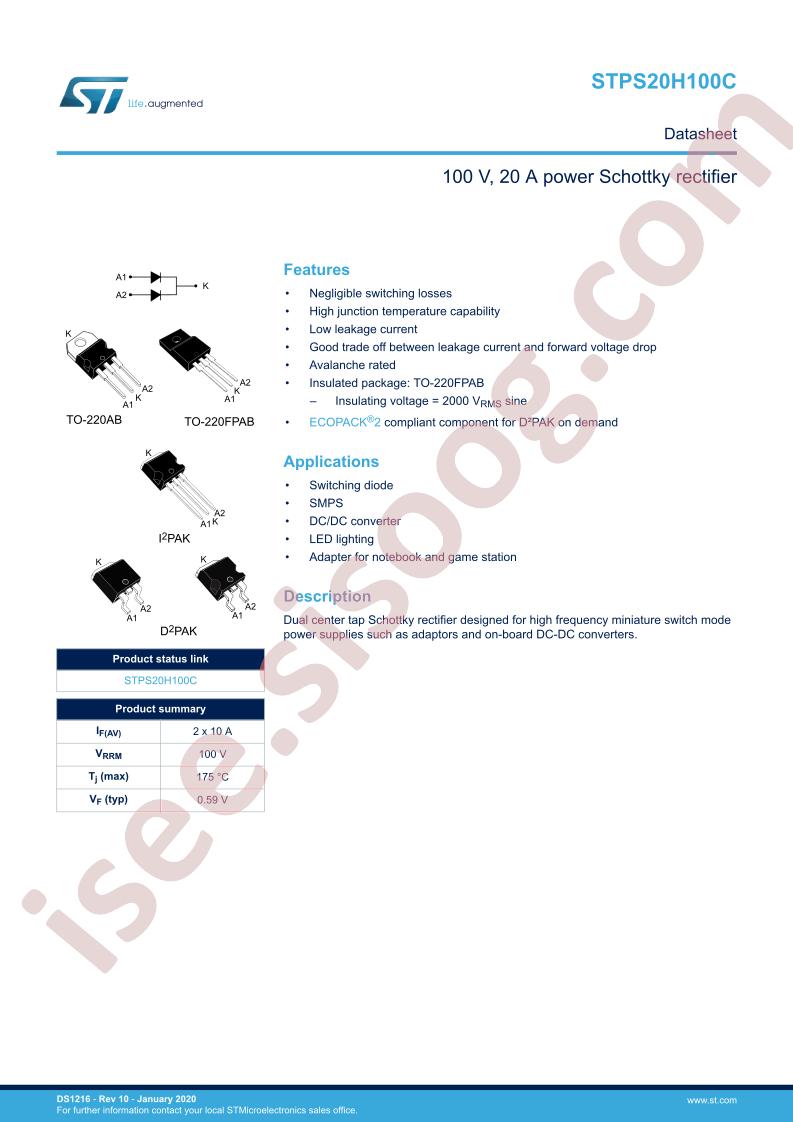

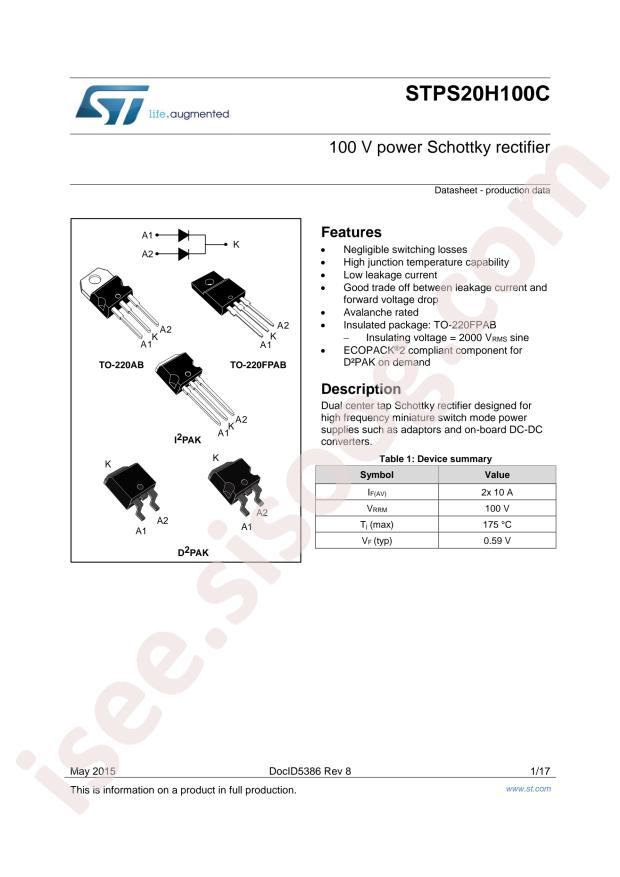

STPS20H100C Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Diode Configuration: 1 Pair Common Cathode
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io) (per Diode): 10A
  • Voltage - Forward (Vf) (Max) @ If: 770mV @ 10A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 4.5µA @ 100V
  • Operating Temperature - Junction: 175°C (Max)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: STPS20
